section
G 7
591098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

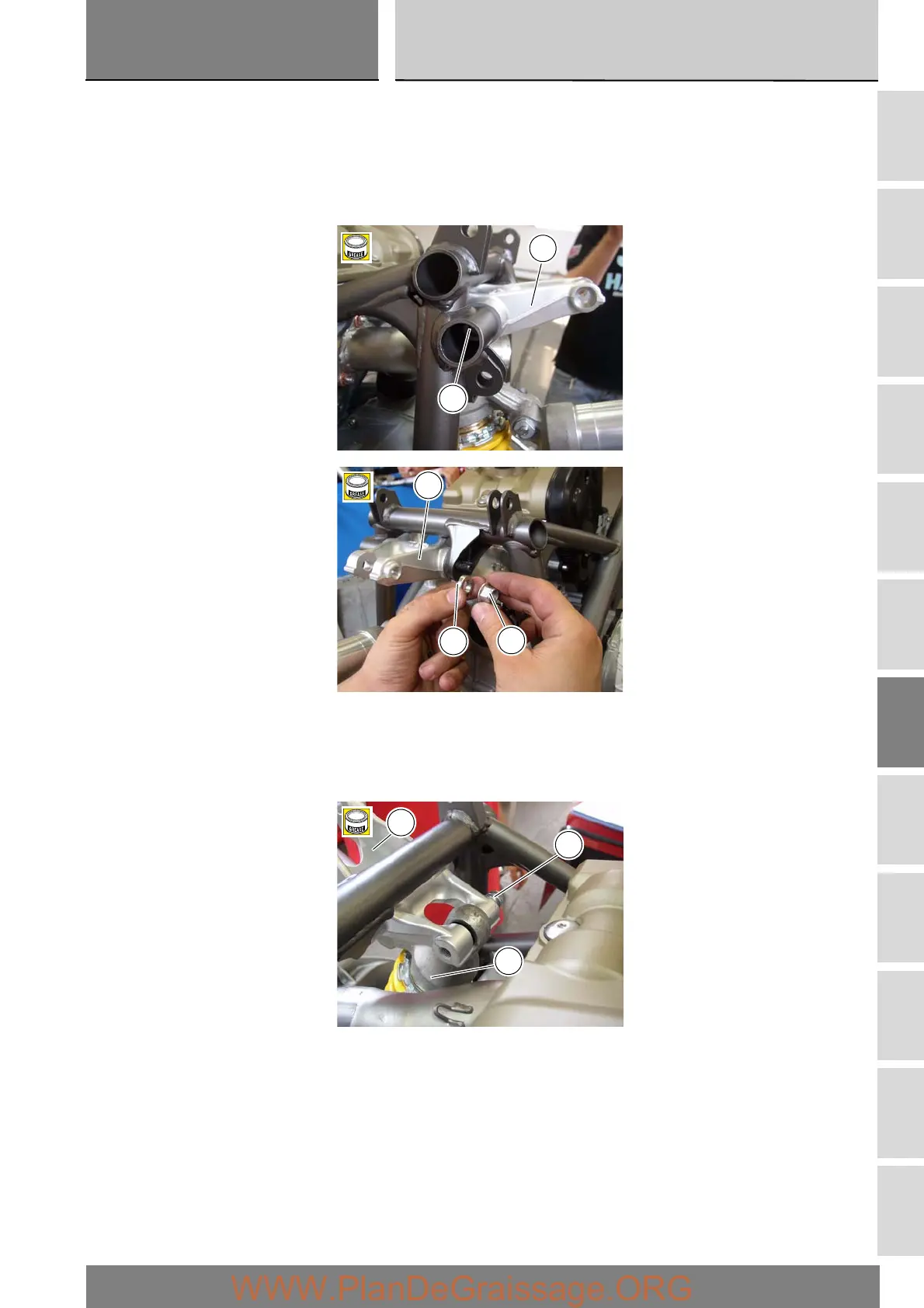

Refitting the rear suspension
Lubricate the shank and thread of the bolt (1) and the underside of the head of the nut (3) with the recommended grease.
Insert the rocker arm assembly (8) between the frame supports, as shown in the figure.
Drive the bolt (1) fully home in the frame.
Fit the nut (3) and washer (2) on the opposite side.
Restrain the nut (3) and tighten the bolt (1) to the specified torque (Sect. C 3).
Grease the thread and the underside of the head of the upper shock absorber bolt (9) and insert it in the rocker arm.
Position the shock absorber (10) with the reservoir at the top.
Align the upper mounting of the shock absorber with the front hole in the rocker arm and lower mounting with the slot in the
swingarm.
8
1
B
8
2
3
B
10
9
8
B
