F 3
18 1098/1098S - M.Y. 2007 - edition 00
Controls - Devices
Refitting the front brake master cylinder

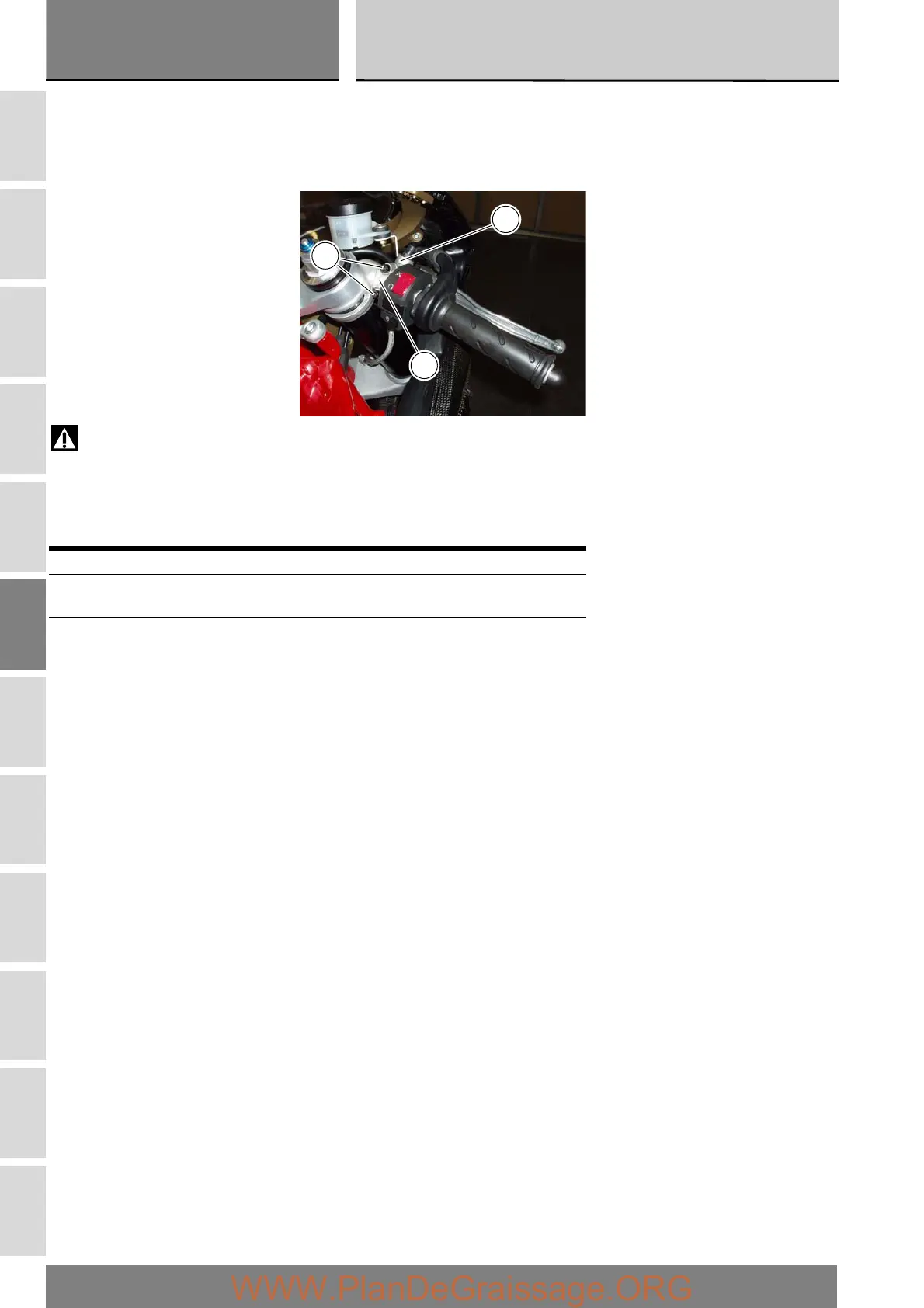

Locate the mounting clamp (8) of the complete master cylinder assembly (1) aligning it with the locating grub screws on the
handlebar.
Tighten the bolts (9) of the mounting clamp (8) to the specified torque (Sect. C 3), in the sequence 1-2-1.
Warning
An incorrectly positioned hose can affect brake operation and foul moving parts.
Position the hose as shown in the figure.
If any work has been carried out on hose (19), follow the instructions given in Sect. G 3.
Operation Section reference
Reconnect the brake hose to the master
cylinder
G3
Fill the brake circuit D 4
1
8
9
