Ducati 1098 2007 - Removal of the Footrests

A
B
C
D
E
F
G
H
L
M
N
P
section
H 4
18 1098/1098S - M.Y. 2007 - edition 00
Frame

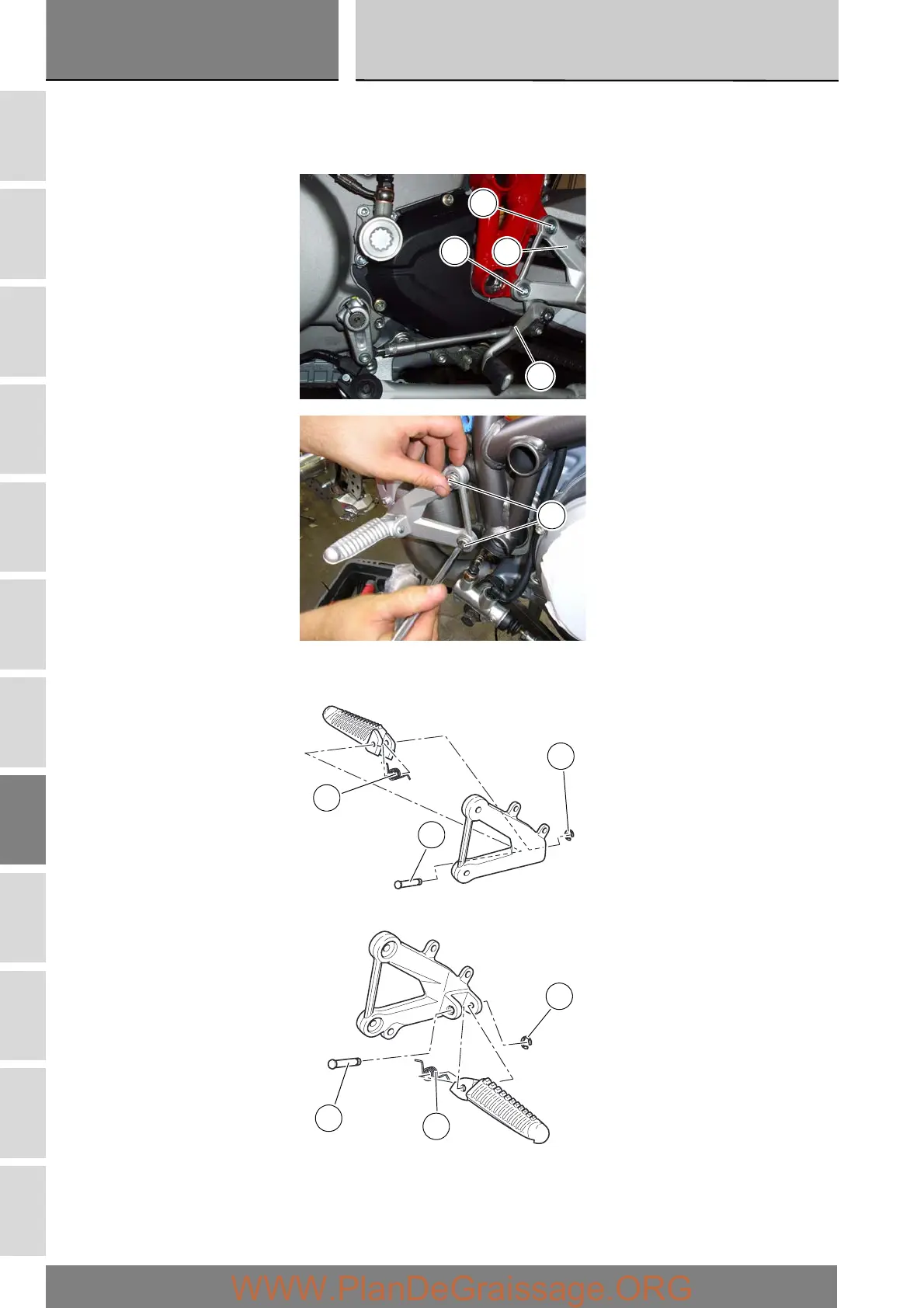

Removal of the footrests
The left footrest assembly can be removed after removing gearchange pedal (A) from the bracket (2) (Sect. F 5).
Undo the two bolts (7) securing the bracket to the frame and remove the complete footrest and bracket assembly.
To separate the footrest and the bracket, remove the circlip (10) and withdraw the pin (4) to release the footrest and the spring (3).
2
7
A
7
7
3
4
10
4
3
10
