Injection - ignition system

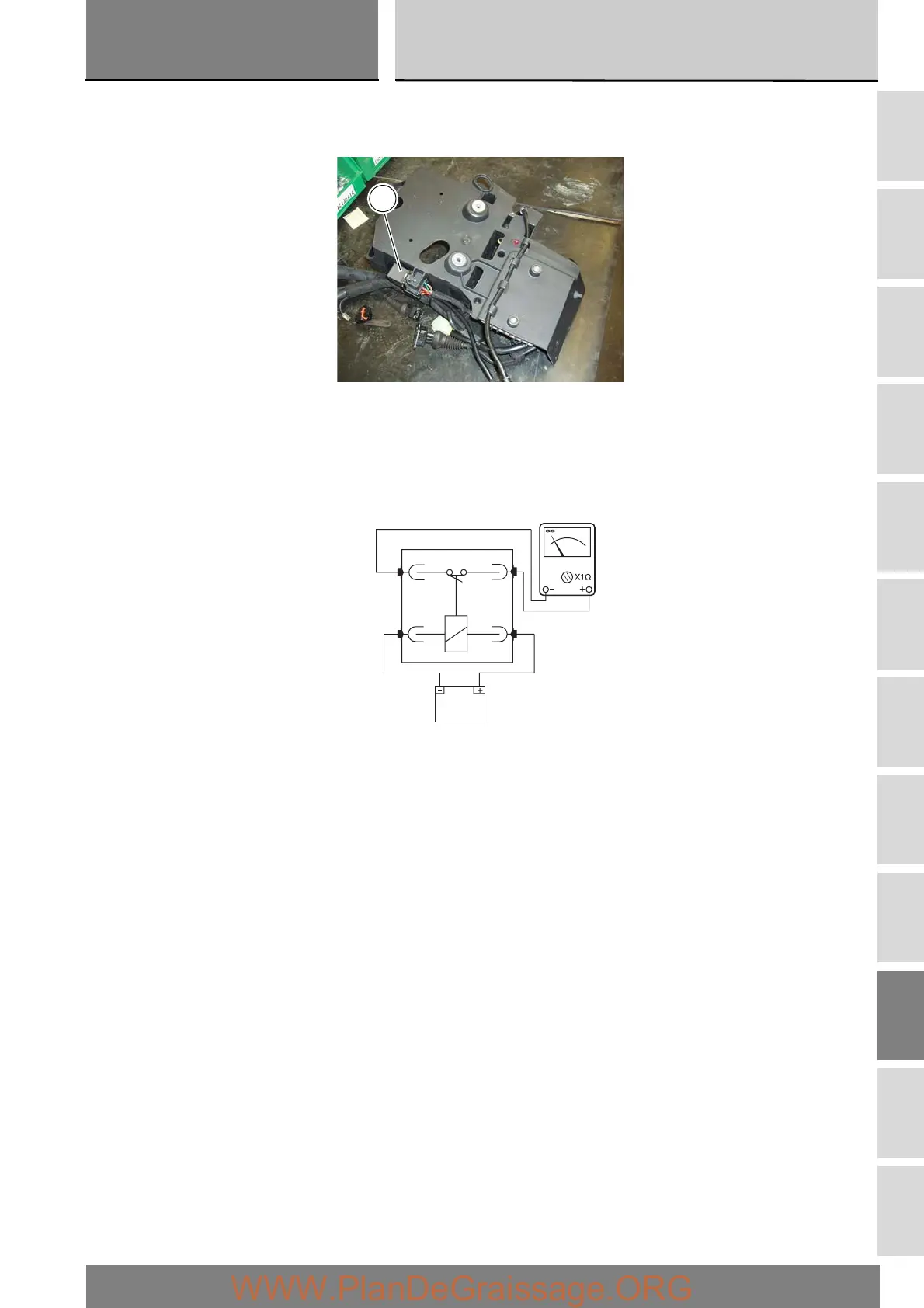

Injection relay
The relay (1) is positioned next to the battery and fixed to the battery support.
To remove the relay (1), first remove the battery support as described previously in this section.
Disconnect the relay from the electrical system and apply 12 V (battery voltage) between contacts (86) and (85) (small contacts):
you should hear a click that confirms that the internal electromagnet has switched.
Connect a multimeter to contacts (30) and (87) (big contacts) to check for electrical continuity (see Sect. P 9 concerning operation
of the multimeter). The resistance reading should be near zero and, if present, the continuity sound signal should be emitted.
If this does not occur, the part must be renewed.
1
12V
85
30 87
86
