N 4.2
631098/1098S - M.Y. 2007 - edition 00
Engine
Refitting the timing belts

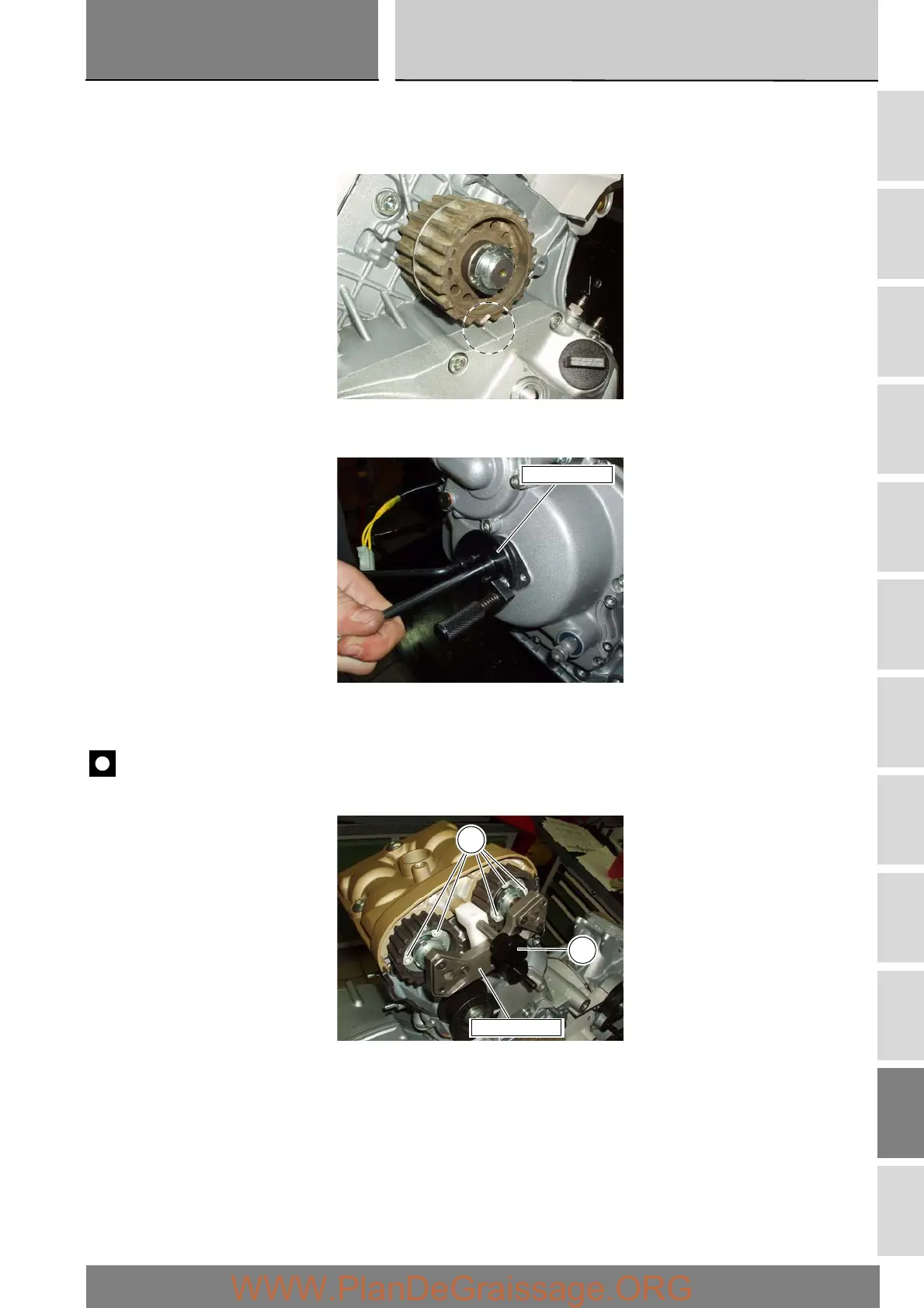

Turn the pulleys on the timing belt driveshaft until the timing mark on the outer roller is aligned with the mark on the clutch cover.
In this condition, the horizontal cylinder piston will be at top dead center.
Install service tool no. 88713.2011 in the seat of the left-hand crankcase cover to prevent crankshaft rotation, and lock it in place
with the pin provided.
Fit service tools no. 88765.1524 to prevent rotation of the camshafts. one for the vertical cylinder head and one for the horizontal
cylinder head.
Fix the tools to the rocker cover with the pin (C).
Important
To ensure correct timing, the bolts (22) securing the pulleys to the hubs must be loose and positioned in the centres of their slots.
88713.2011
88765.1524
22
C
