section
N 6.3
1371098/1098S - M.Y. 2007 - edition 00
Engine

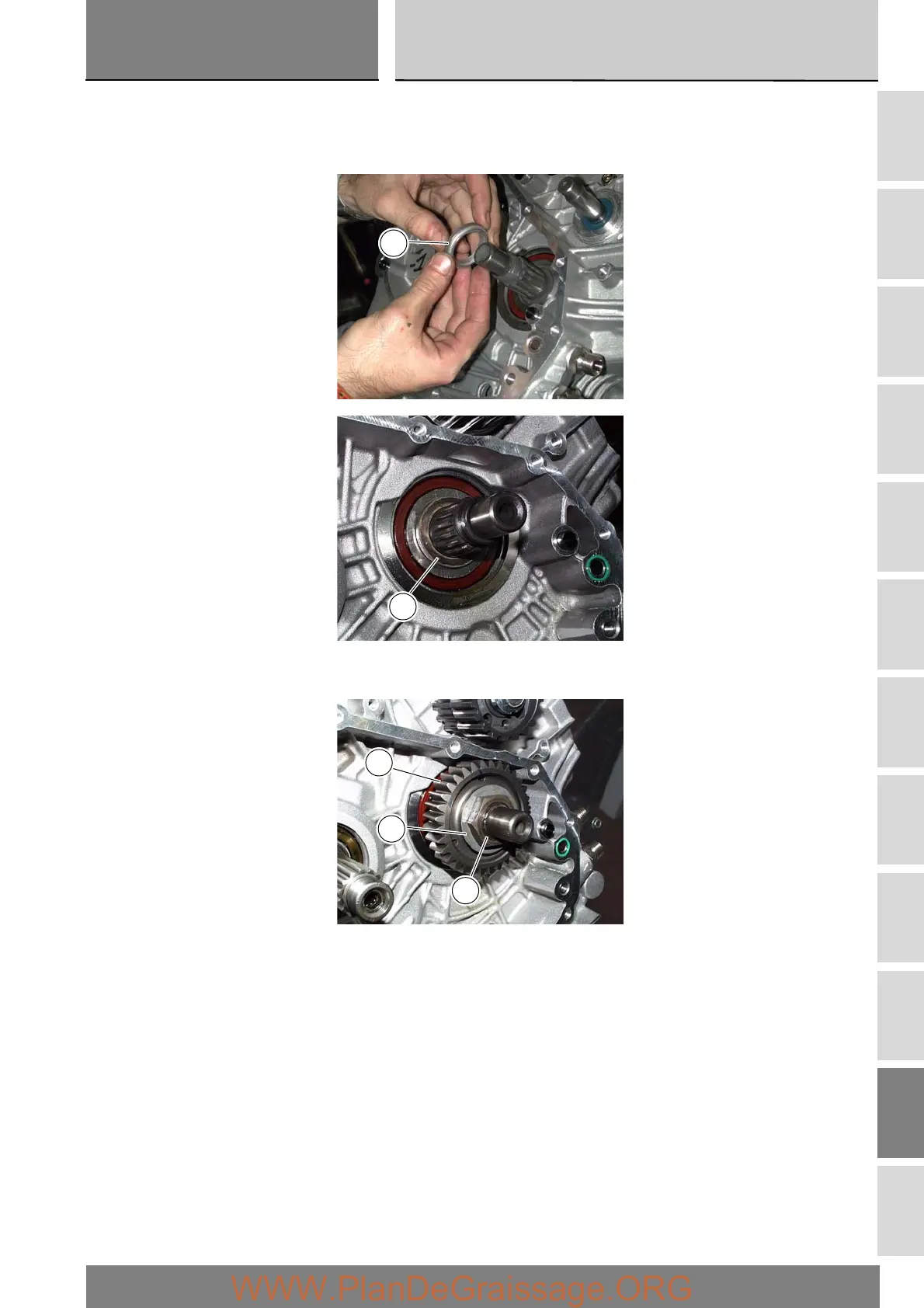

Refitting the primary drive gears and checking backlash
Carefully degrease the splined end of the crankshaft and the corresponding internal splines of the primary gear.
Fit the inner spacer (9) to the shaft with its flat side facing outwards.
Fit gear (D) onto the crankshaft with oil pump drive sprocket facing the crankcase.
Temporarily secure the gear with washer (10) and nut (11).
9
9
11
10
D
