Engine

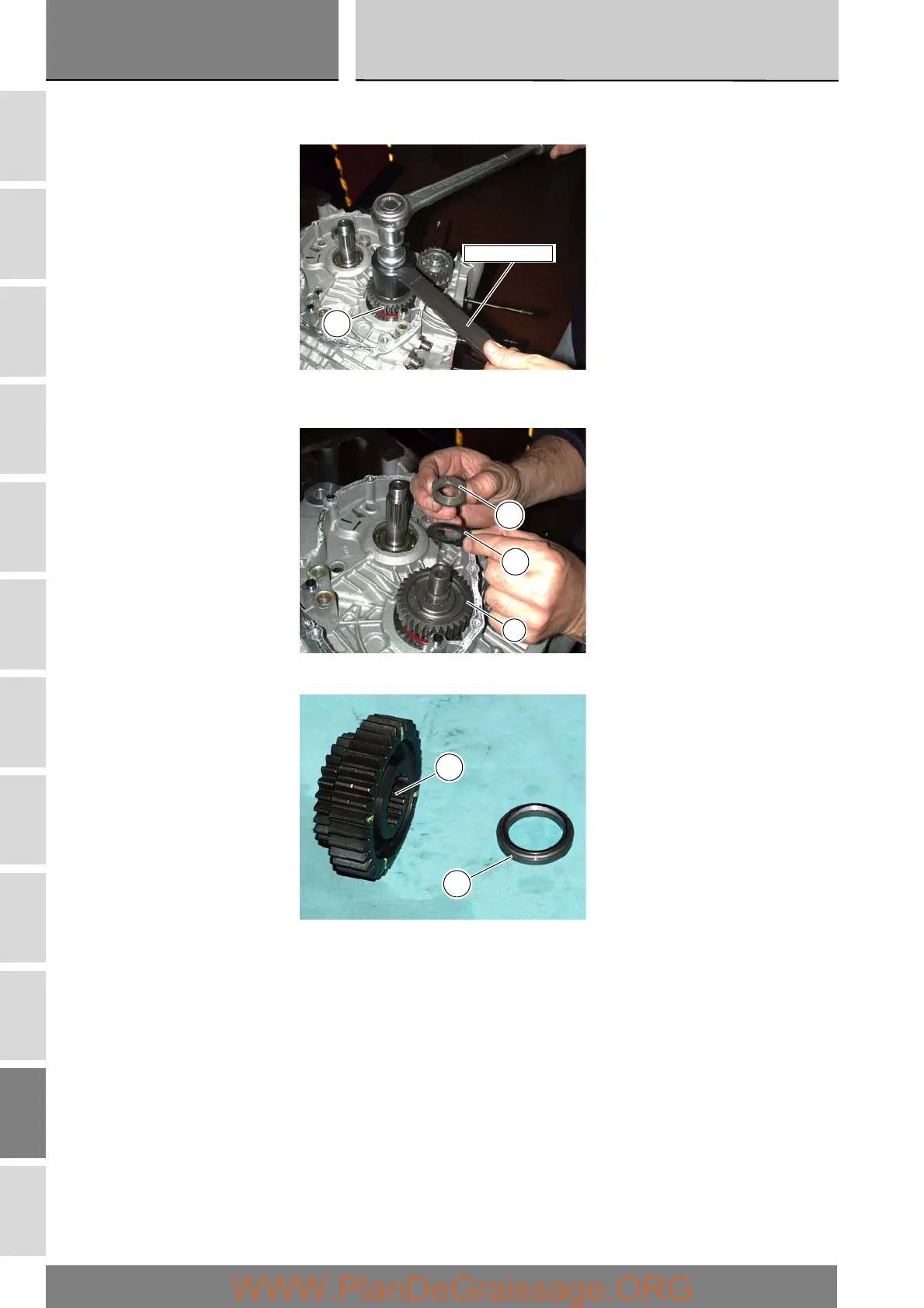

Fit the service tool no. 88713.2102 to the gear (D) and immobilise it by inserting a pin in one of the holes mounting the engine
block to the frame.
Loosen the retaining nut (11) of the driving gear (D) using a socket wrench of suitable length.
Remove the nut (11) and the lock washer (10).
Remove the driving gear (C) of the primary drive and the spacer (9) from the crankshaft.
88713.2102
D
10
11
D
D
9
