591098/1098S - M.Y. 2007 - edition 00
Engine
Reassembly of the timing pulleys

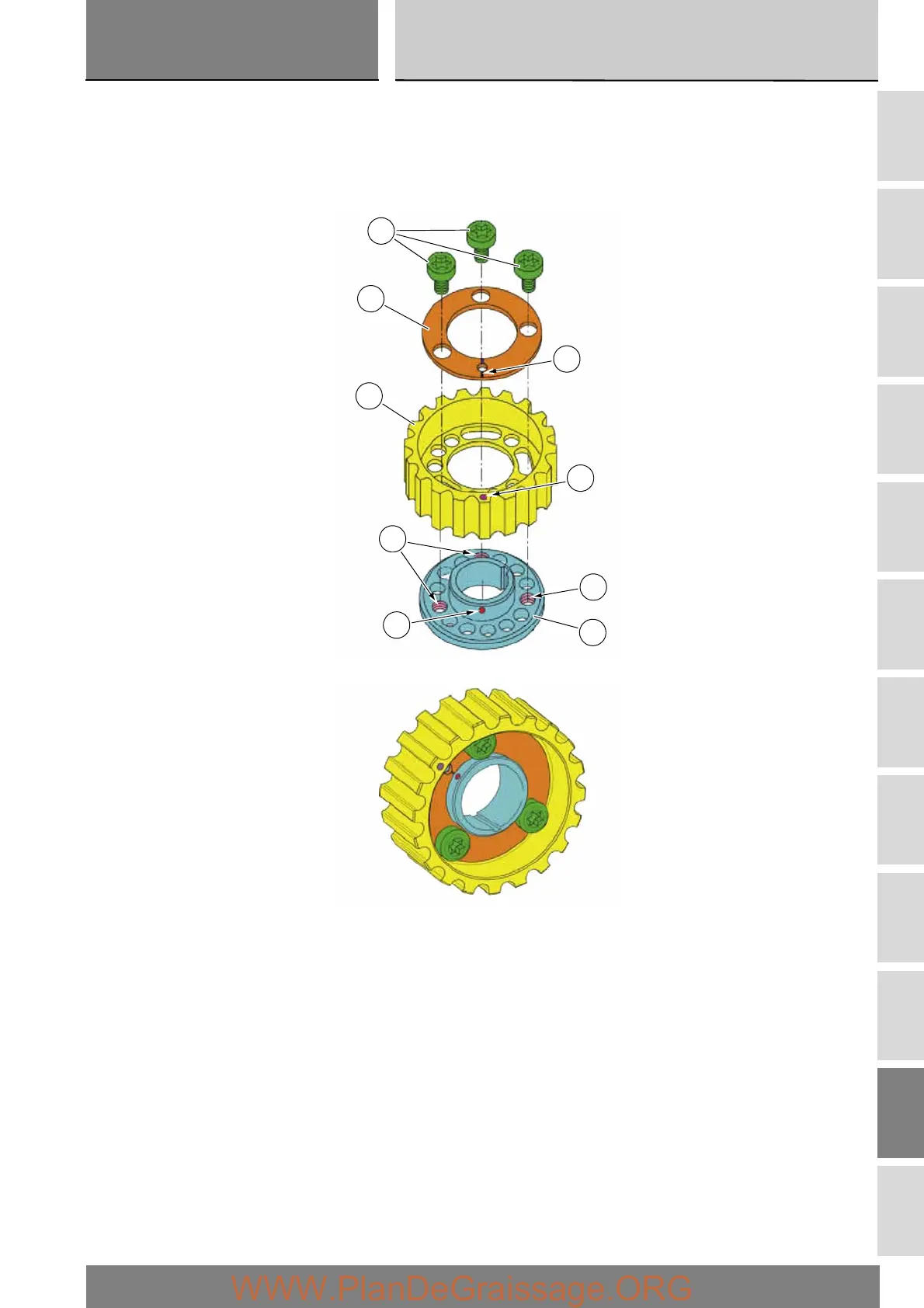

Fit the pulley (11) on the hub (24), aligning the timing mark (D) on the pulley with the timing mark on the (E) on the hub.
Install the washer (23) up aginst the pulley, aligning the timing notch (F) with the timing marks on the pulley and the hub.
Insert the three bolts (22) in the threaded holes (G) of the hub.
Tighten the bolts (22) to the specified torque (Sect. C 3, Engine torque settings).
22
23
11
24
G
E
G
F
D
