54 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Removal of the rear shock absorber

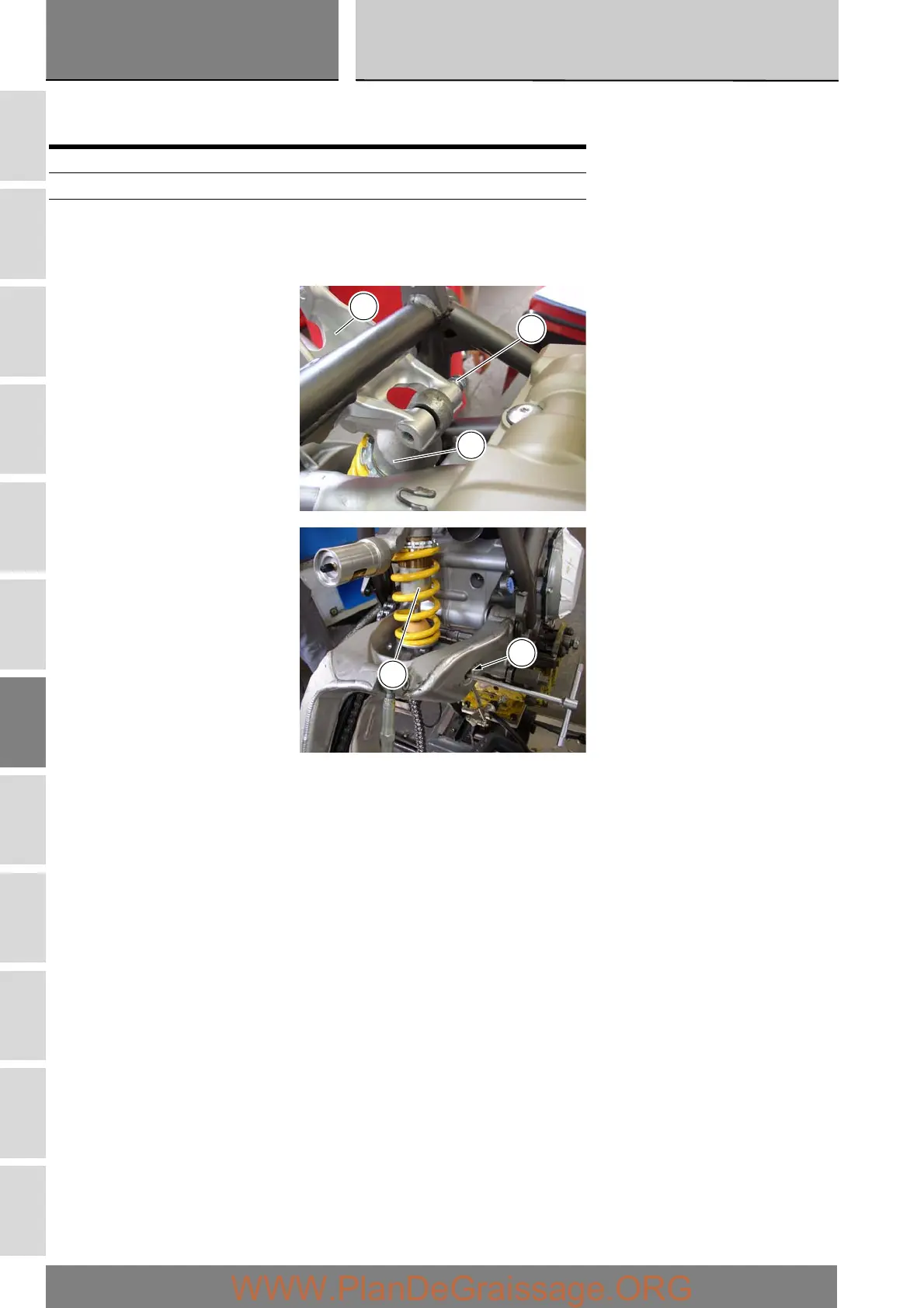

To remove the rear shock absorber (10) from the swingarm and from the rocker arm (14), remove the upper (9) and lower (17)
mounting bolts.
Operation Section reference
Remove the seat cowling E 3
Remove the rear wheel G 4
10
9
8
10
17
