Fuel / Exhaust System

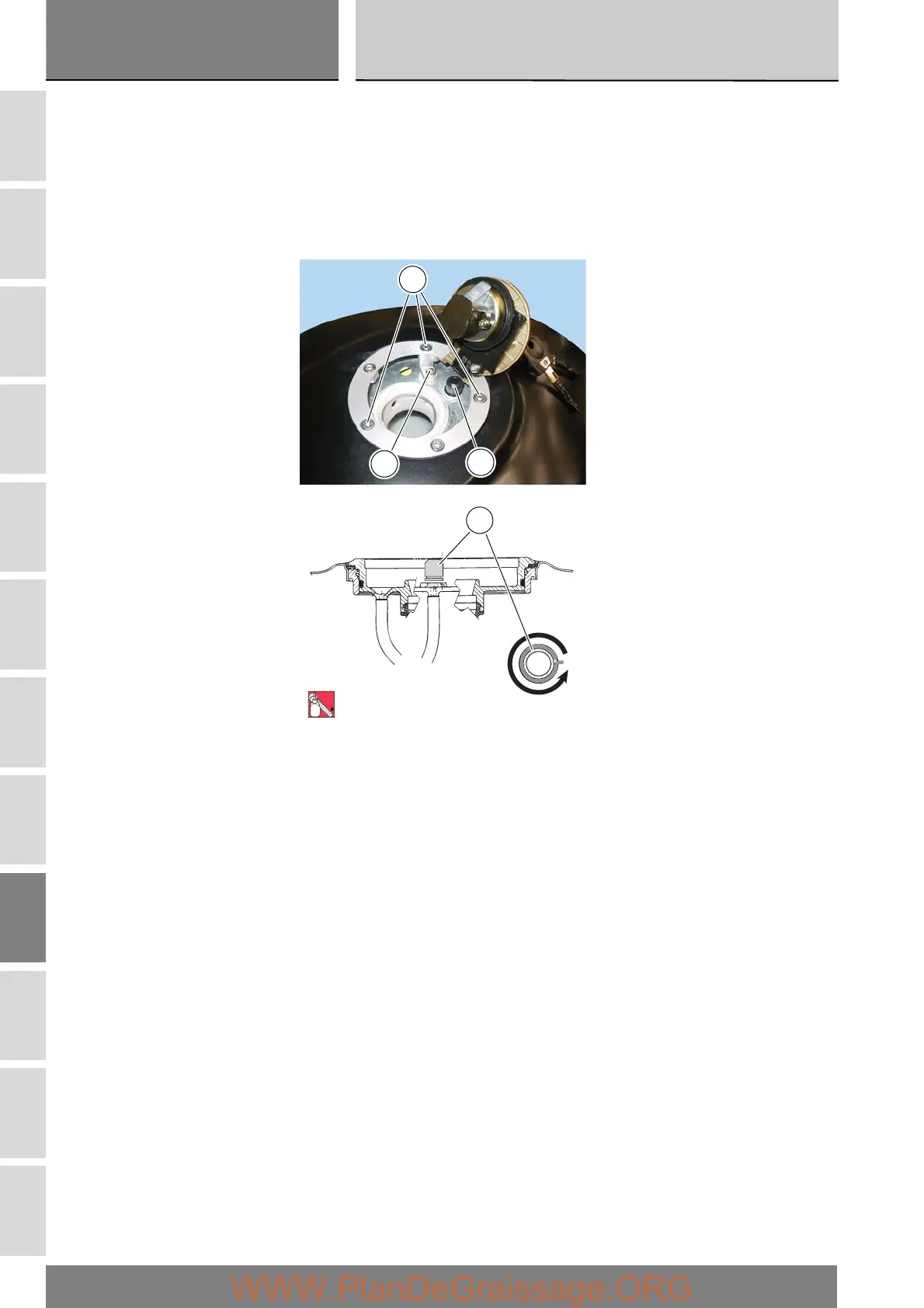

Removal of the fuel filler cap assembly
Open the filler cap.
Unscrew the outer bolts (9) securing the ring nut to the filler cap recess.
Unscrew the anti-theft screw (8) on the inside.
Remove the complete filler cap assembly.
The rubber breather nozzle (B) is located inside the filler cap. If the nozzle (B) is to be renewed, apply a uniform film of speed
bonder around the groove.
Fit the nozzle making sure that it is properly seated in the recess groove.
9
8
B
7
LOCK
B
