N 3.2
24 1098/1098S - M.Y. 2007 - edition 00
Engine
Refitting the radiator

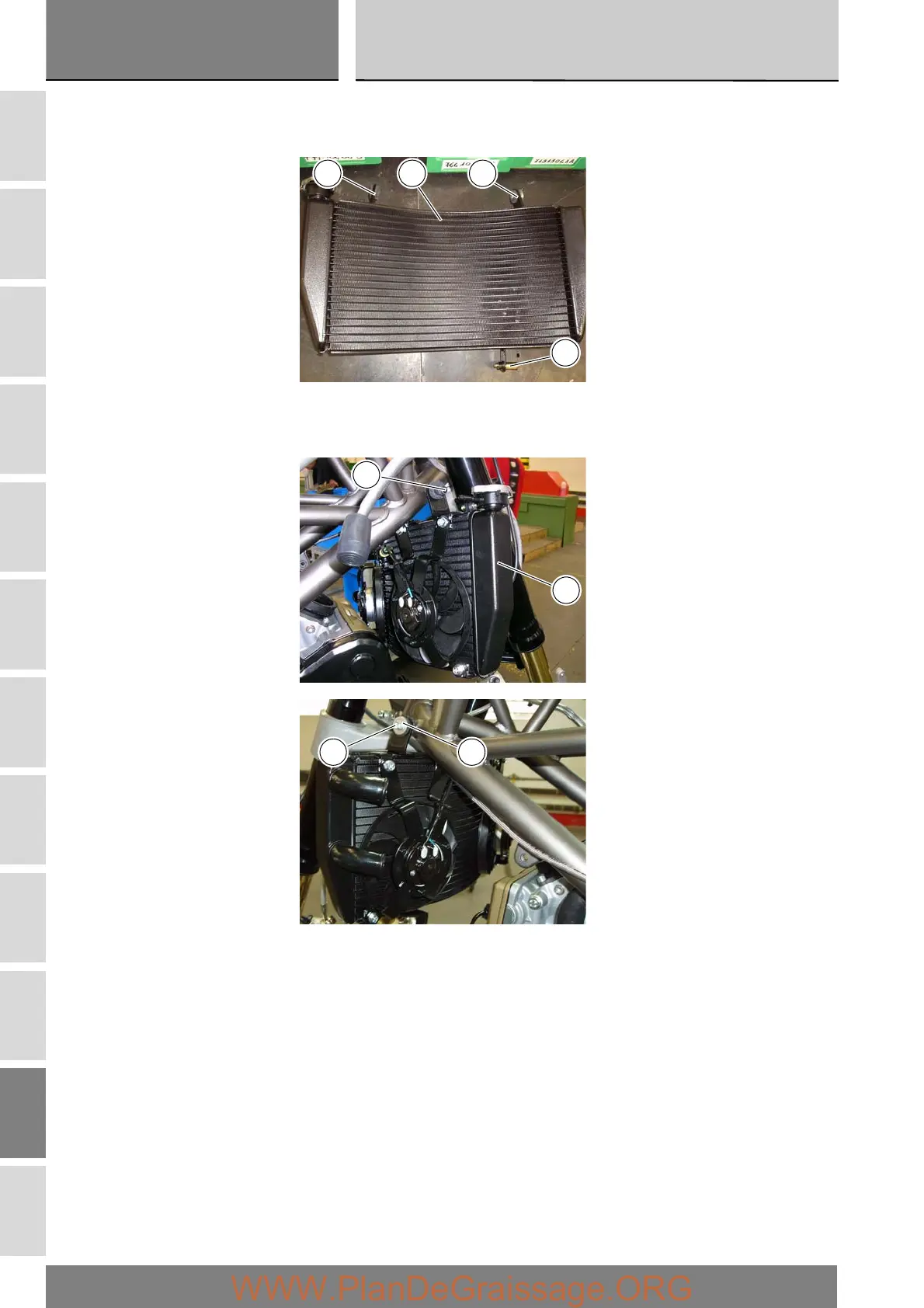

Check that the rubber mountings (5) are present on the upper radiator brackets (10) and that the special screw (13) is fitted.
Insert the support of radiator (10) on the pin (A) on the right-hand side of the frame and then fit the screw (3) with the spacer (4)
on the left-hand side.
Tighten the bolt (3) to the specified torque (Sect. C 3).
5 10 5
13
D
10
43
