section
G 6
511098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Refitting the rear brake caliper
If the brake hoses are renewed or if one of the components of the rear brake system have been removed, make sure that the
hose connection fittings on the master cylinder and the caliper are correctly positioned.
Warning

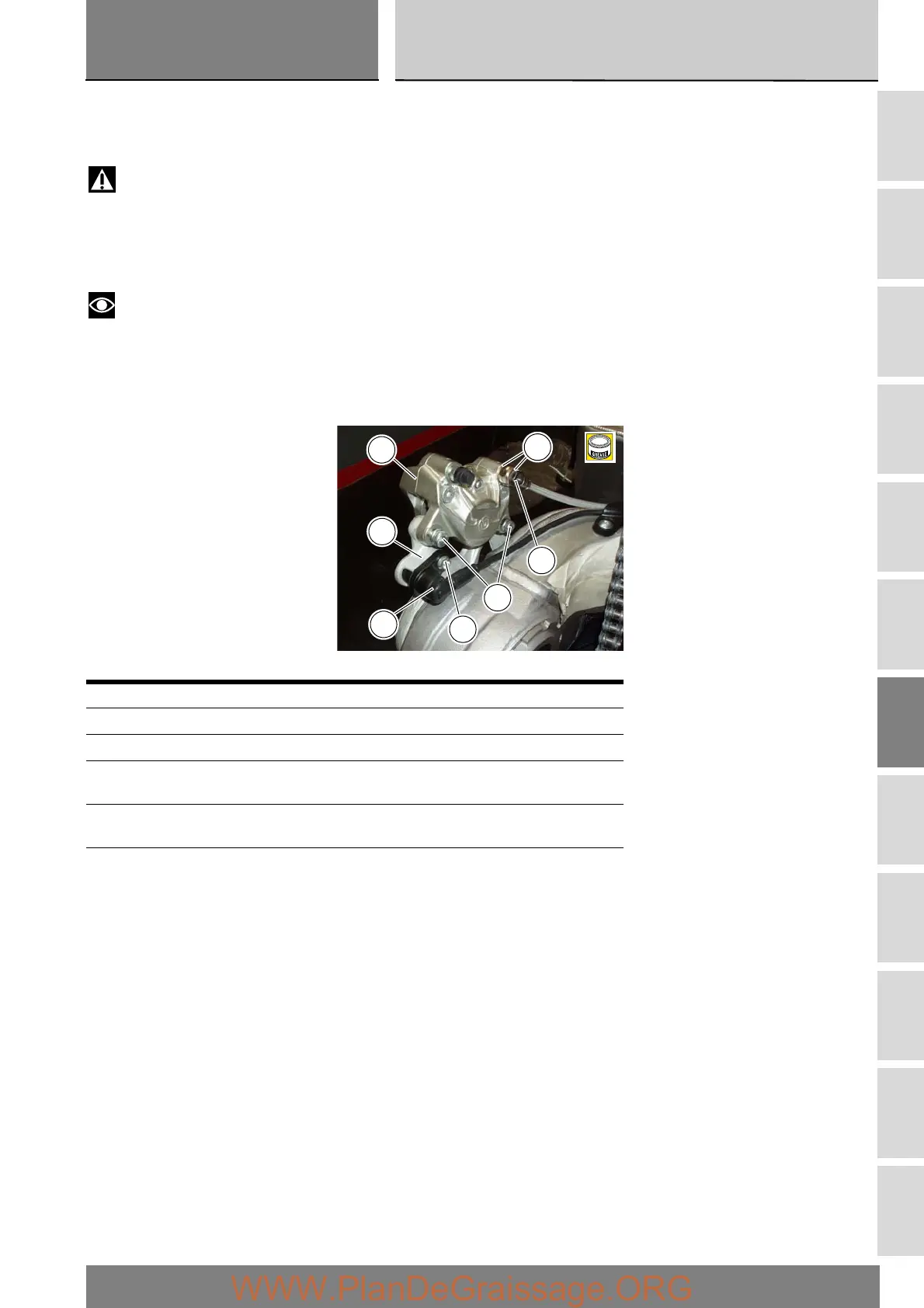

An incorrectly positioned hose can affect brake operation and foul moving parts. Position the hose as shown in the figure.
Remember to fit the copper faced sealing washers (12) to the either of the hose end fitting the brake hose to the caliper (11).
After positioning the fitting correctly, tighten the banjo bolt (13) to the specified torque (Sect. C 3).
If removed, locate the speed sensor (6) on the caliper mounting bracket (B) with the spacer (5) and tighten the bolt (7) to the
specified torque (Sect. C 3).
Notes
The gap between the sensor (6) and the brake disc bolt must be between 0.6 and 2.2 mm.
If the caliper mounting bracket (B) was removed, see Sect. G 5 for refitting instructions.
Fit the rear brake caliper (11) over the brake disc, aligning it with the holes in caliper mounting bracket (B).
Apply grease to the bolts (8) and tighten to the specified torque (Sect. C 3) interposing the washers (9) and (10) between the bolts
and the caliper mounting bracket (B).
Operation Section reference
Remove the lower chain slider G 5
Refit the rear wheel G 4
Remove the banjo bolt securing the brake
hose to the rear brake master cylinder
F4
Fill the rear braking system with brake
fluid
D4
Refit the right-hand side fairing E 2
7
11
B
6
8
B
12
13
