Fairings
4 - Front mudguard
Removal of the front mudguard

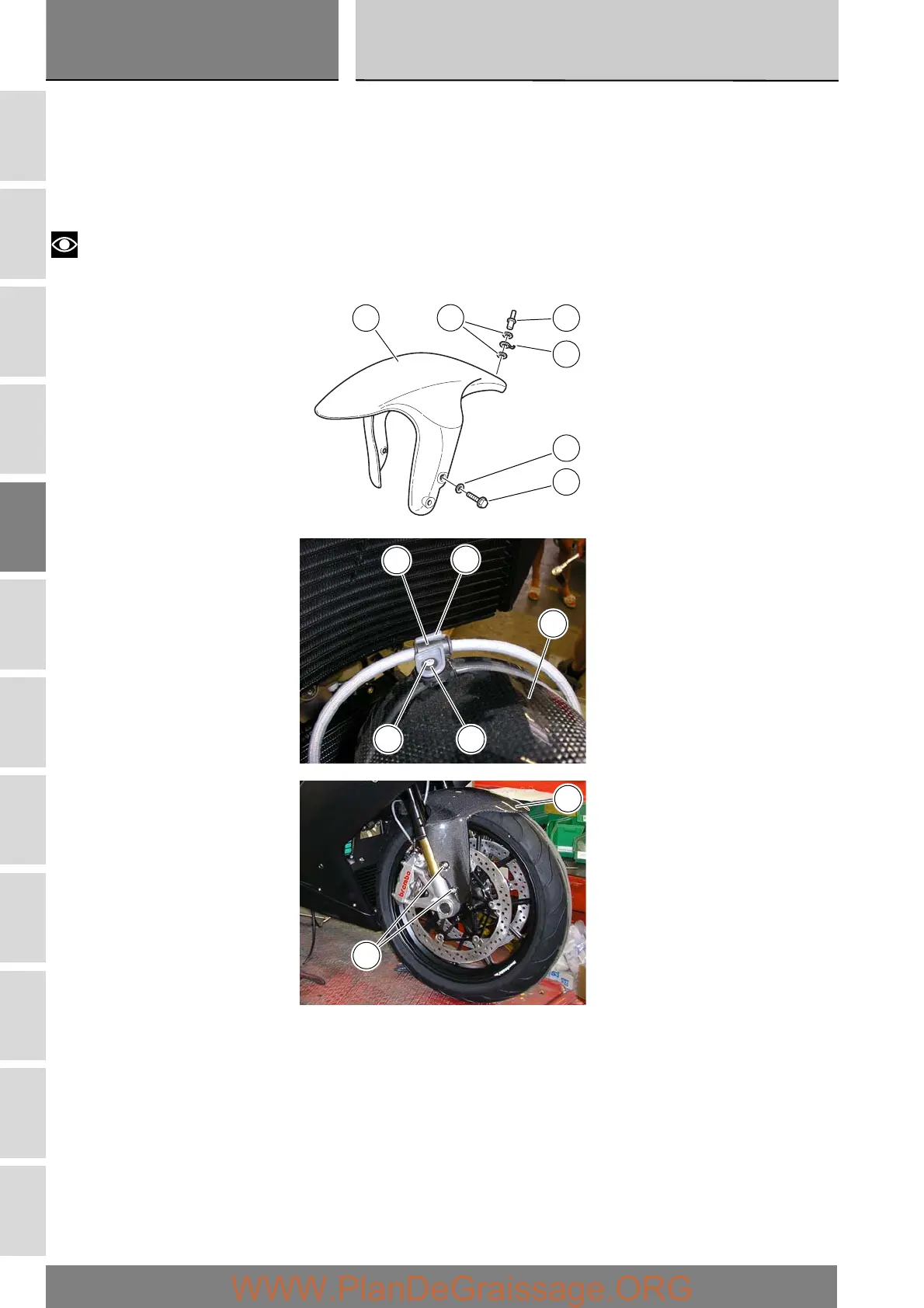

Disconnect the brake hose (A) from the clip (1).
Remove the retaining bolts (2) and recover the nylon washers (3).
Remove the front mudguard (4).
Notes
The clip (1) is secured to the front mudguard by means of a shear rivet (5) with two washers (6).
