Wheels - Suspensions - Brakes
Refitting the brake discs
The front brake discs consist of an inner carrier, which is mounted to the wheel, and an outer rotor. Both parts must be changed
together as a pair.
Remove the front wheel (Sect. G 1).

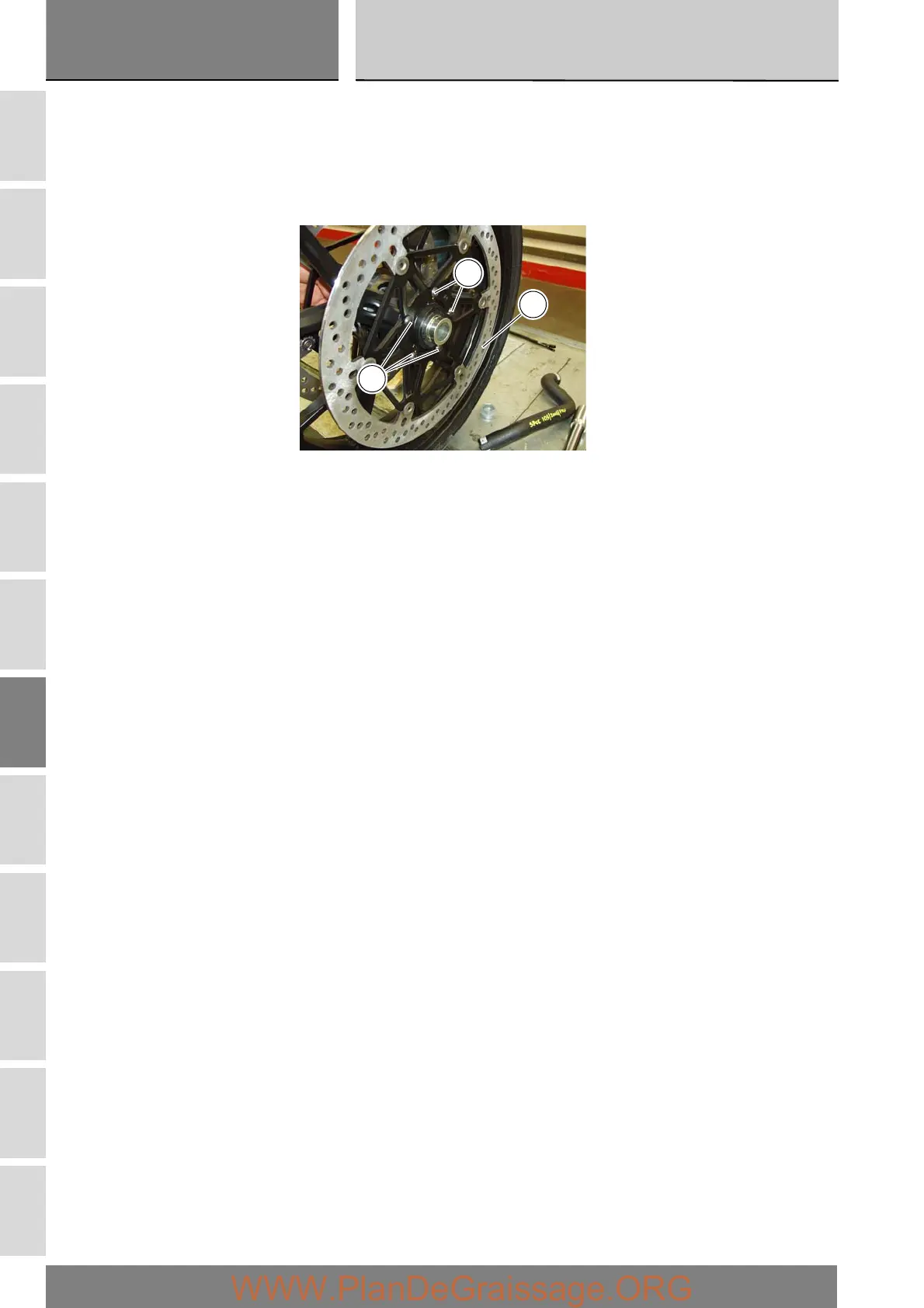

Undo the bolts (14) securing the brake discs to the wheel and remove the discs (13) from both sides of the wheel.
14
13
14
