section
E 1
6 1098/1098S - M.Y. 2007 - edition 00
Fairings

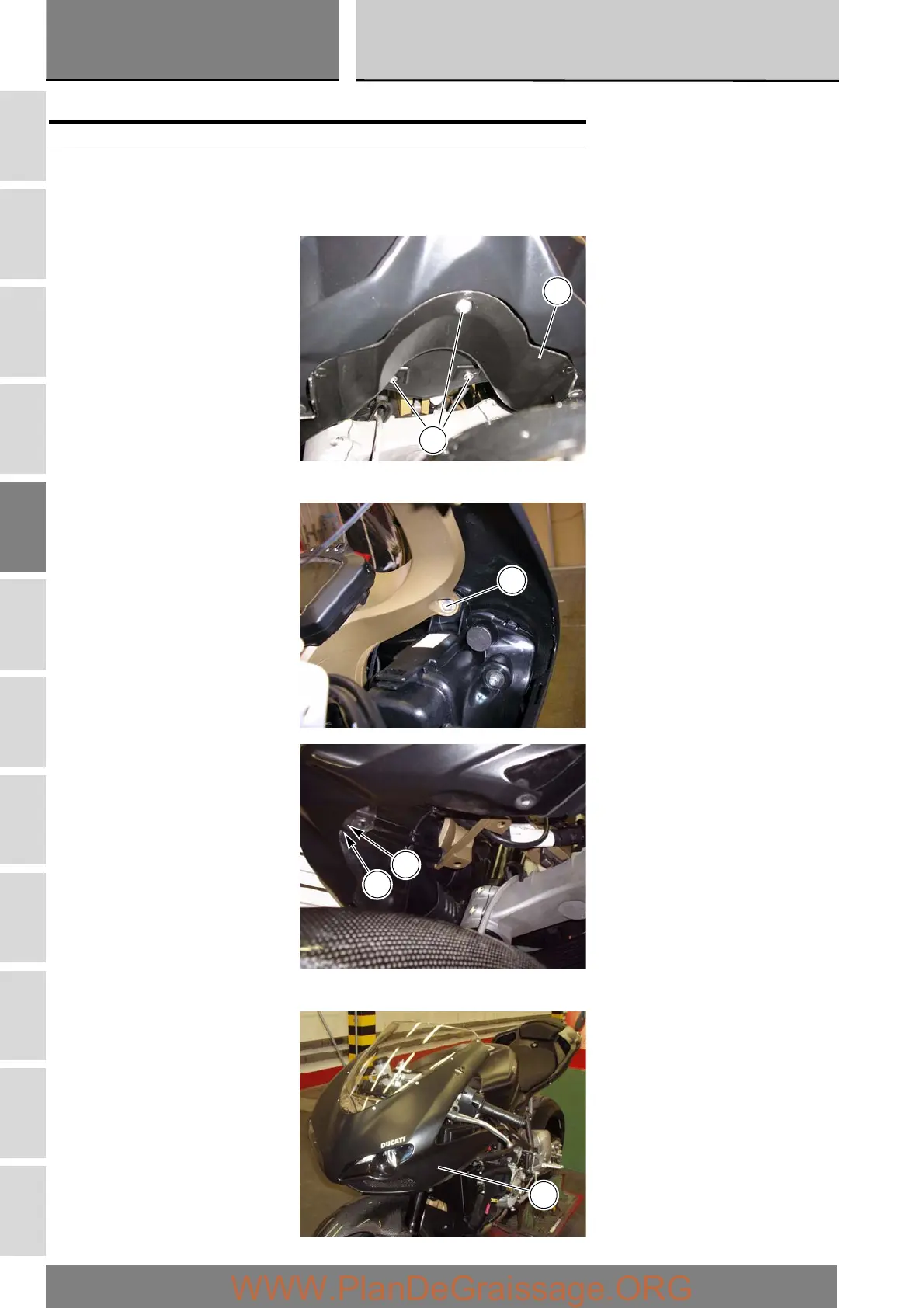

Removal of the headlight shell
To remove the headlight shell, you must first remove the rear view mirrors as described above.
Unscrew bolts (18) and remove the splash guard (14).
Unscrew the bolts (5) (on both sides of the headlight support frame) and the bolt (2) with washer (3) under the light assembly.
Slide the headlight shell (1) forward, releasing it from the rubber mountings of the lights assembly.
Operation Section reference
Remove the side fairings E 2
14
18
5
2
3
1
