N 7.2
158 1098/1098S - M.Y. 2007 - edition 00
Engine
Reassembly of the gearbox shafts

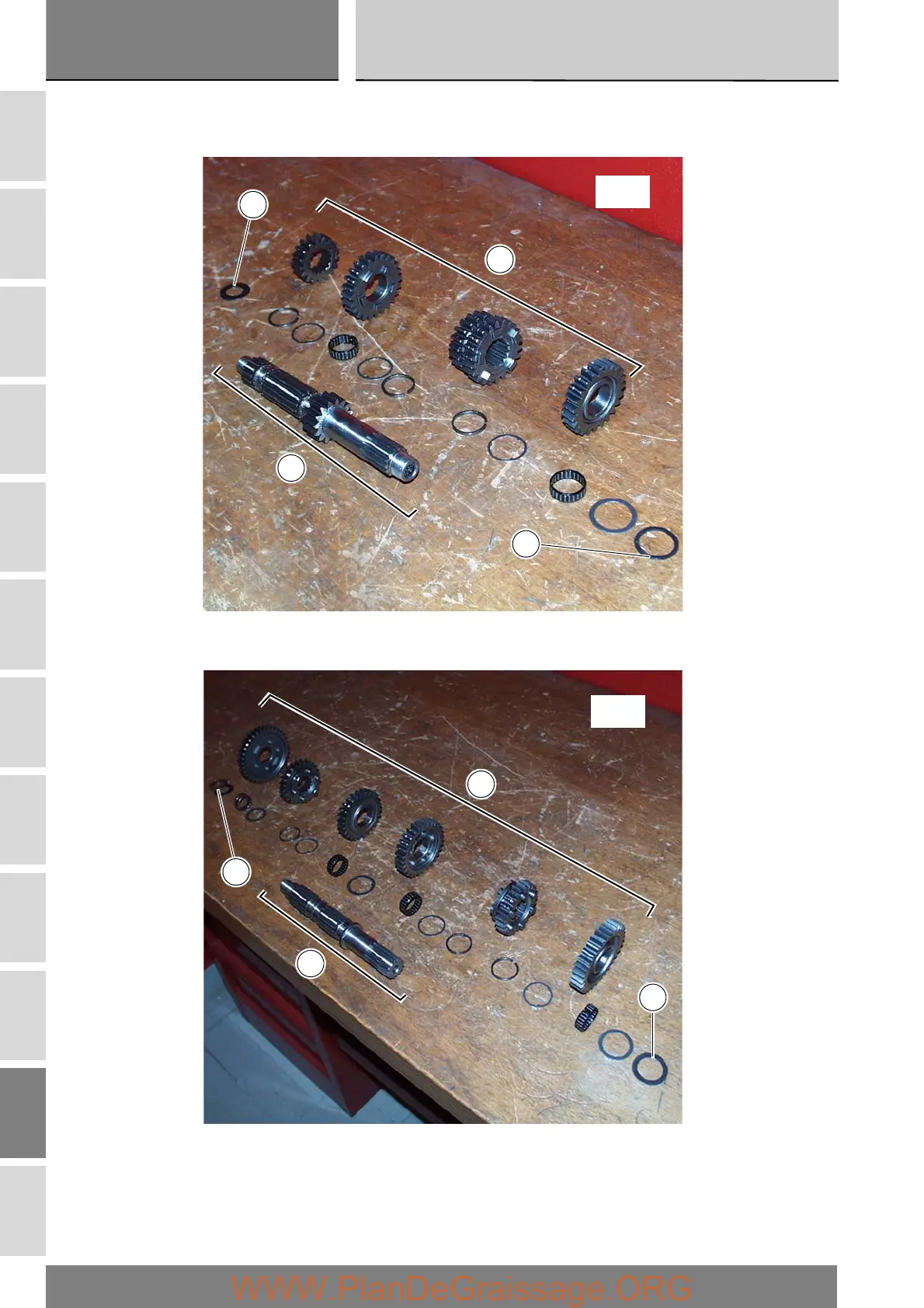

Figure 1 shows all the parts to be reassembled on the gearbox input shaft (2), with the calculated shims (1) and (11) (Sect. N 9.2).
Figure 2 shows all the parts to be reassembled on the gearbox output shaft (25), with the calculated shims (15) and (26)
(Sect. N 9.2).
Fig. 1
11
2
1
2
Fig. 2
26
15
25
25
