Reassemble the gears on the gearbox shafts by reversing the disassembly procedure.
Take particular care when installing the idler gears. The assembly of the 3
rd
and 4
th
speed gears and the relative fixing
components on the output shaft is given as an example.

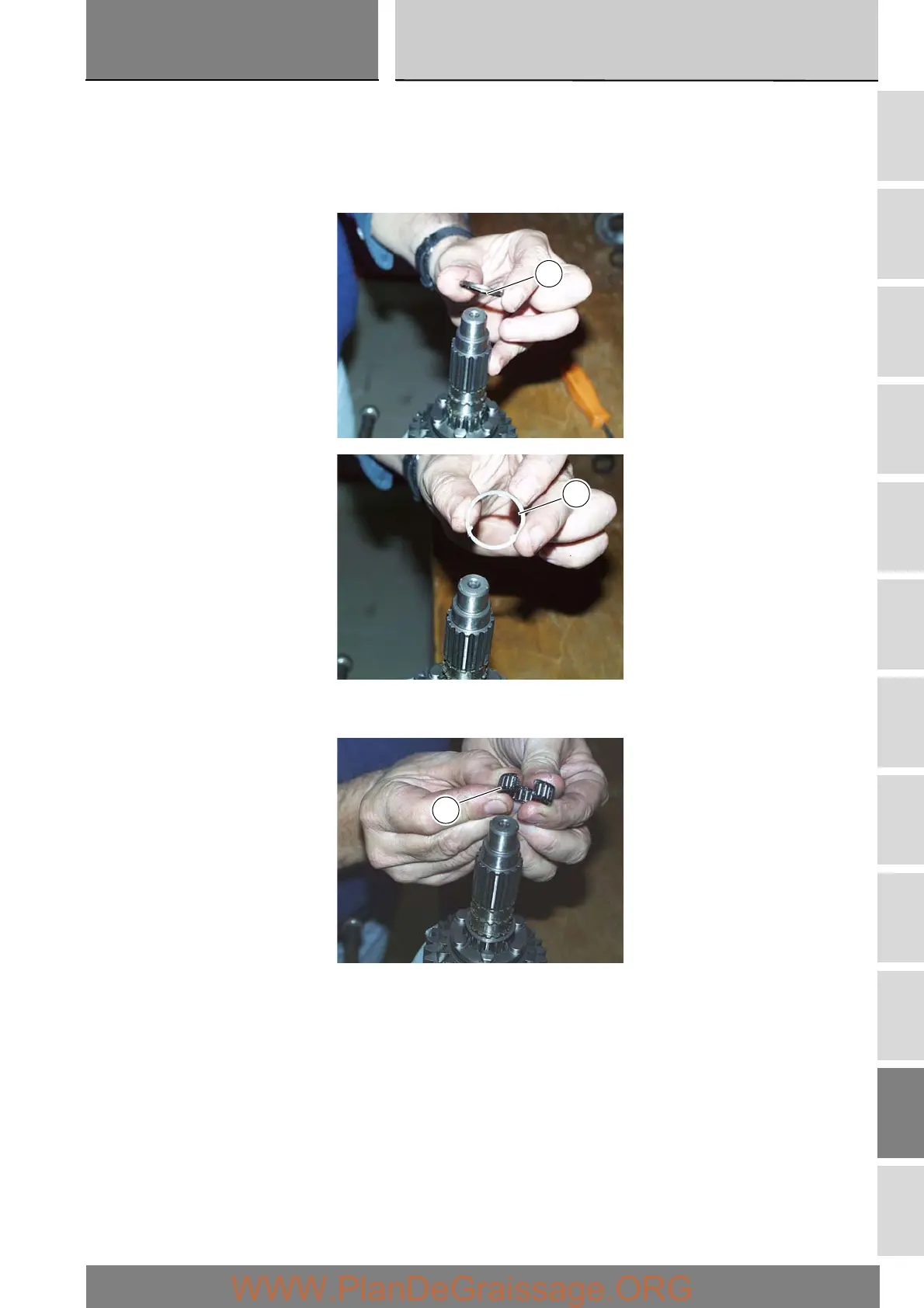

Fit the circlip (7), checking that it is fully inserted into its groove on the shaft. Push the circlip (7) home using a suitable size tubular
drift.
Slide the washer with three internal points (6) over the shaft until it locates against the circlip you have just fitted.
To fit the needle roller cage (4) onto the shaft, first lubricate it with plenty of grease (of recommended type) and then open it
slightly to make it easier to slide on to the shaft.
