F 3
16 1098/1098S - M.Y. 2007 - edition 00
Controls - Devices
3 - Front brake control
1 Front brake master cylinder
2 Brake lever pedal
3 Banjo bolt
4 Sealing washer, thickness 1
5 Microswitch
6Elbow fitting
7 Pivot bolt
8 Upper clamp
9Bolt
10 Bolt
11 Reservoir bracket
12 Rubber mounting
13 Bolt
14 Fluid reservoir cover
15 Fluid reservoir assembly
16 Hose clip
17 Reservoir-master cylinder hose
18 Nut
19 Calipers–master cylinder hose
Important

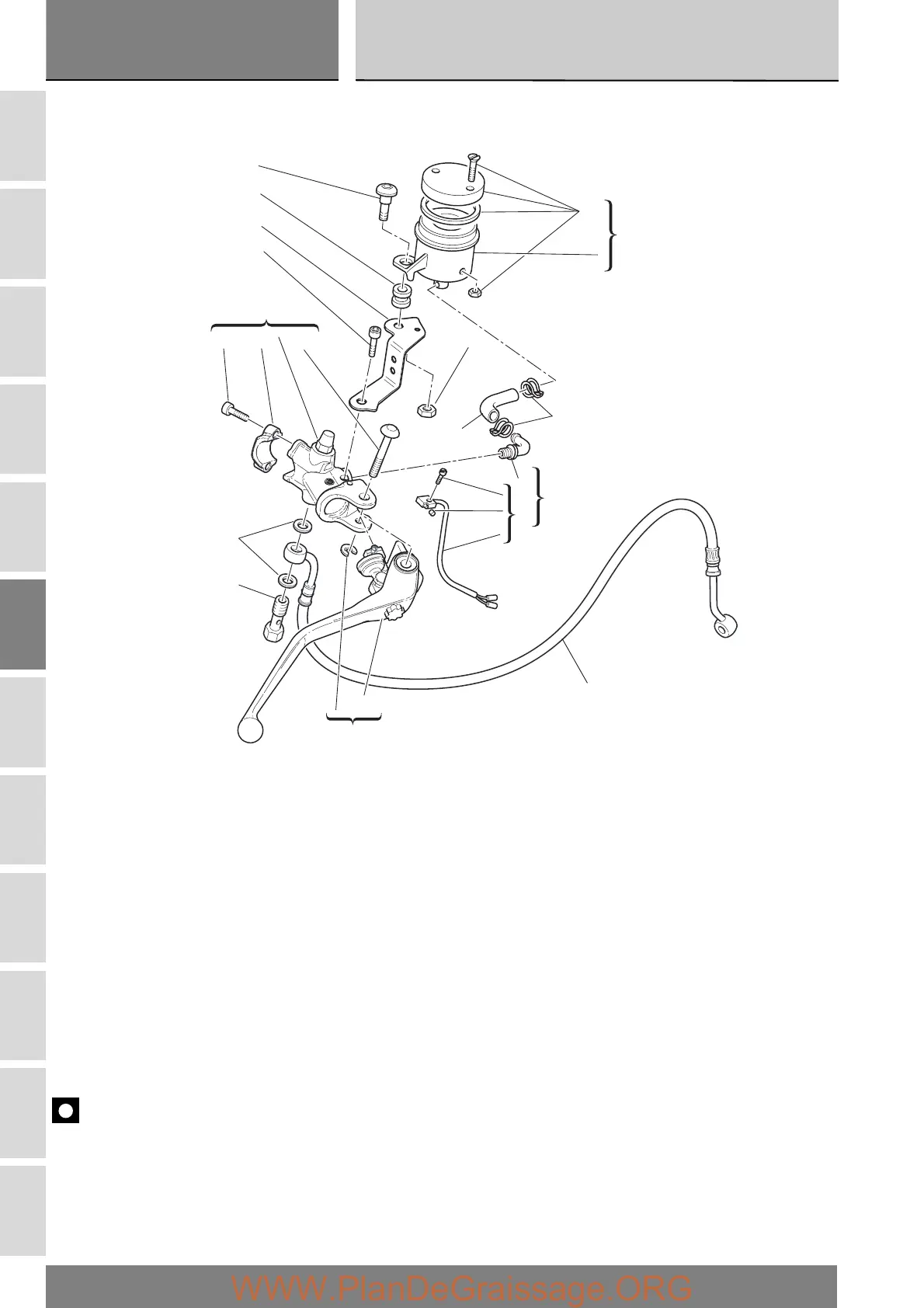

Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
19
13
12
11
10
4
3
1
789
15
14
18
16
17
5
1
6
1
2
1
