Ducati 1098 2007 - 9.2 - Crankcase assembly: crankcase halves

A
B
C
D
E
F
G
H
L
M
N
P
section
N 9.2
1951098/1098S - M.Y. 2007 - edition 00
Engine

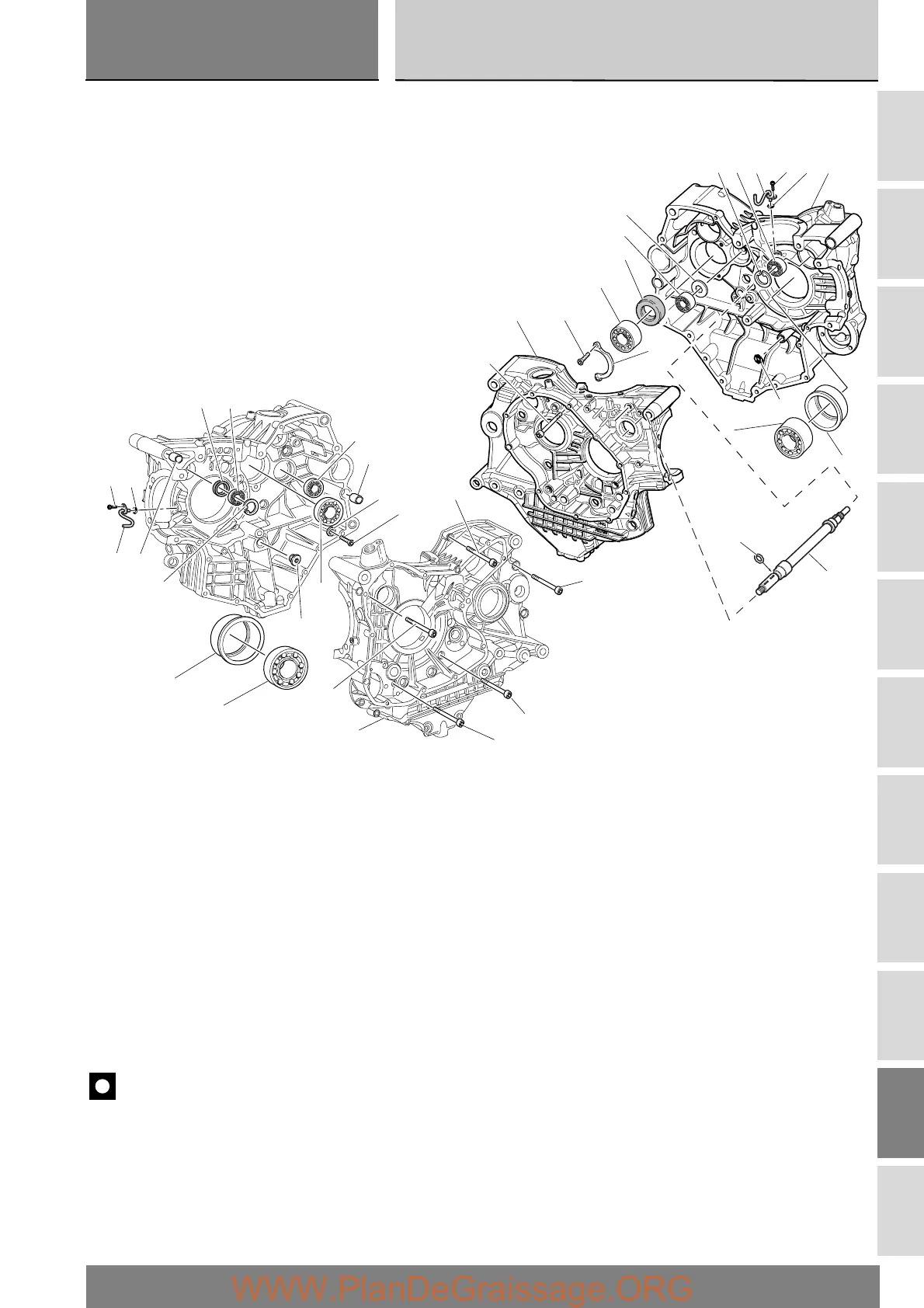

9.2 - Crankcase assembly: crankcase halves
1 Bearing
2 Bearing shell
3 Crankcase half - front
4 Bearing
5 Circlip
6Washer
7 Bearing
8 Oil seal
9 Bearing
10 Retaining plate
11 Bolt
12 Bolt (M8x90)
13 Right-hand side crankcase half
14 Oil seal
15 Bearing
16 Circlip
17 Bearing shell
18 Bearing
19 Bearing
20 Bolt
21 Spacer
22 Bush
23 Bearing
24 Bolt (M6x35)
25 Bolt (M8x75)
26 Bolt (M8x75, drilled)
27 Bolt (M6x75)
28 Bolt (M8x90)
29 Circlip
30 Timing belt driveshaft
31 O-ring
32 O-ring
33 Hose
34 Bolt
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
25
27
26
25
24
34
14
15
16
17
19
28
18
22
3
21
20
22
23
30
29
31
1
3
2
10
8
9
11
13
12
4
5
6
7
34
33
32
33
32
1
