N 4.5
78 1098/1098S - M.Y. 2007 - edition 00
Engine

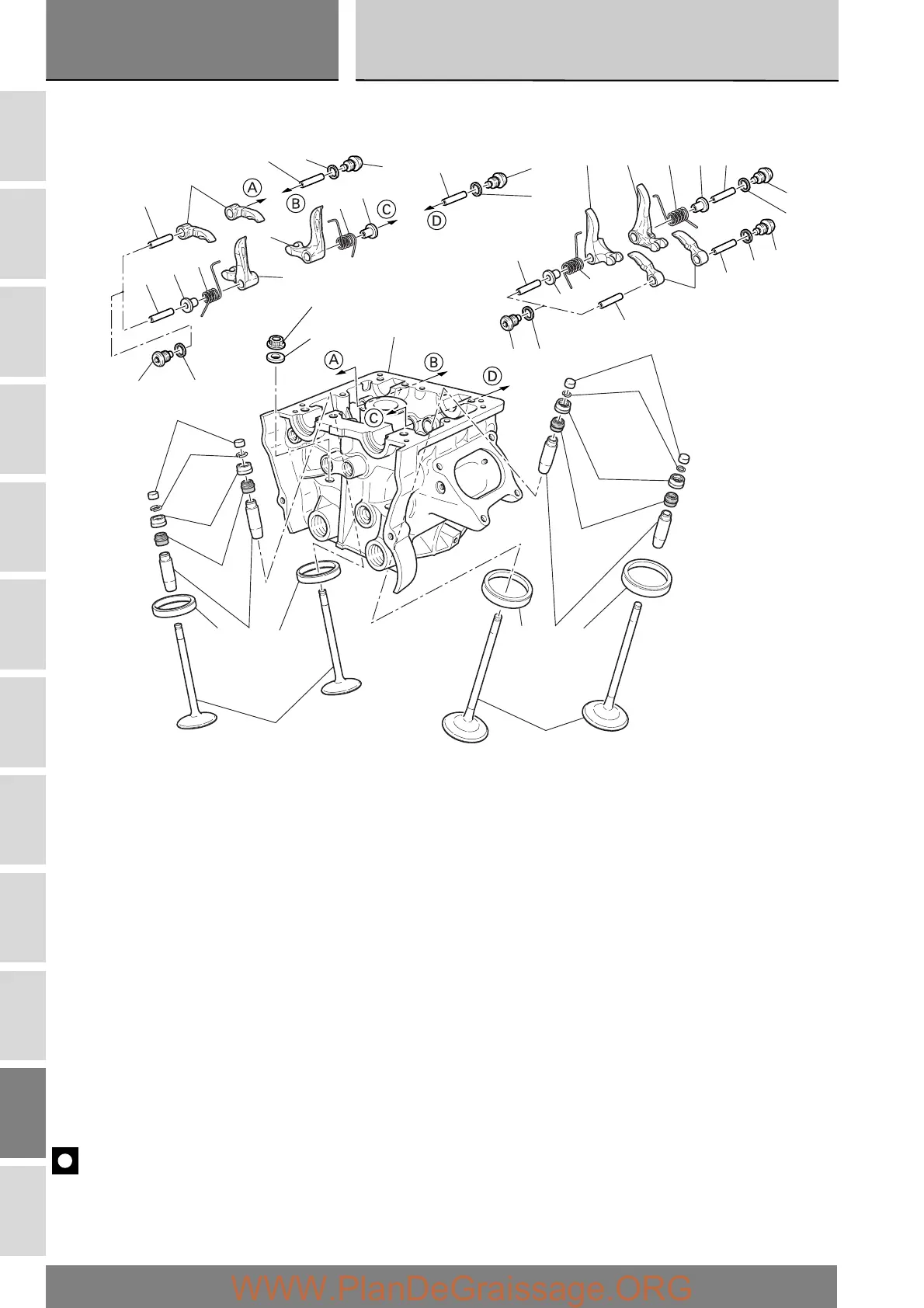

4.5 - Cylinder head assemblies: valves–rocker arms
1 Closing rocker arm shaft
2 Opening rocker arm shaft
3 Opening rocker arm
4 Closing rocker arm (left)
5 Valve opening shim
6 Half rings
7 Valve closing shim
8 Oil seal
9 Valve guide
10 Exhaust valve seat
11 Exhaust valve
12 Plug
13 Intake valve seat
14 Intake valve
15 Aluminium gasket
16 Closing rocker arm (right)
17 Spacer
18 Valve return spring (right)
19 Valve return spring (left)
20 Cylinder head
21 Cylinder head nut
22 Washer
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
21
22
12
5
6
7
8
9 1010
11
14
15
15
12
1
17
19
4
16
9 1313
3
17
18
112
15
2
16
18
4
19 17 1
15
12
2
15
12
2
2
12 15
5
3
17
6
7
8
1
20
1
