section
N 9.1
190 1098/1098S - M.Y. 2007 - edition 00
Engine

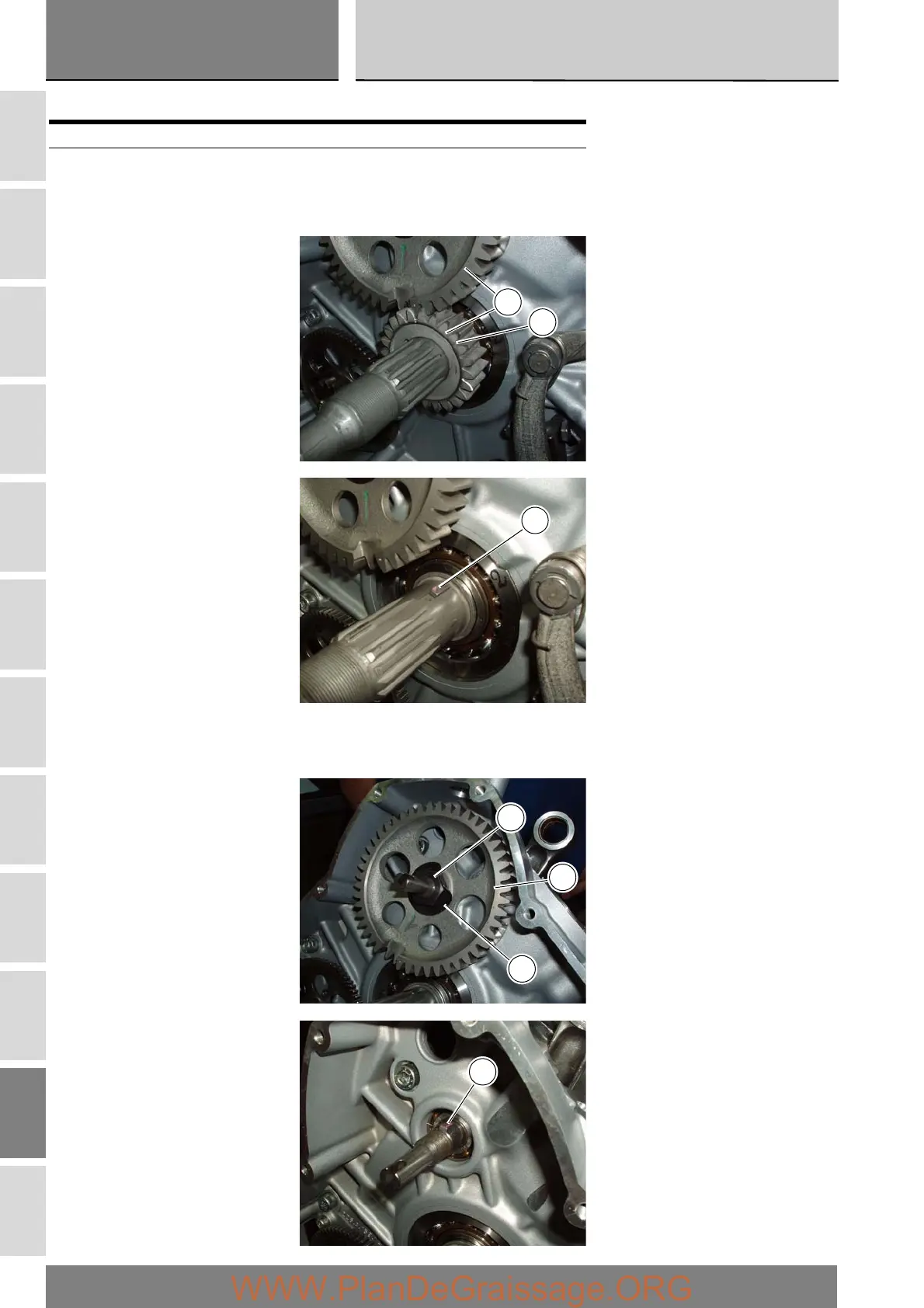

Removal of the timing gears
Slide out driving gear (A) of timing gear pair (13) and remove the Woodruff key (14).
Relieve the staking on the lock washer (12) of the nut (11).
Restrain the driven timing gear by inserting a pin (C) in one of the holes, and unscrew the nut (11).
Remove the nut (11), washer (12), driven timing gear (B) and Woodruff key (15) from the timing belt driveshaft shaft.
Operation Section reference
Remove the left-hand crankcase cover
and alternator assembly
N8
13
A
14
B
11
12
15
