section
N 6.3
134 1098/1098S - M.Y. 2007 - edition 00
Engine

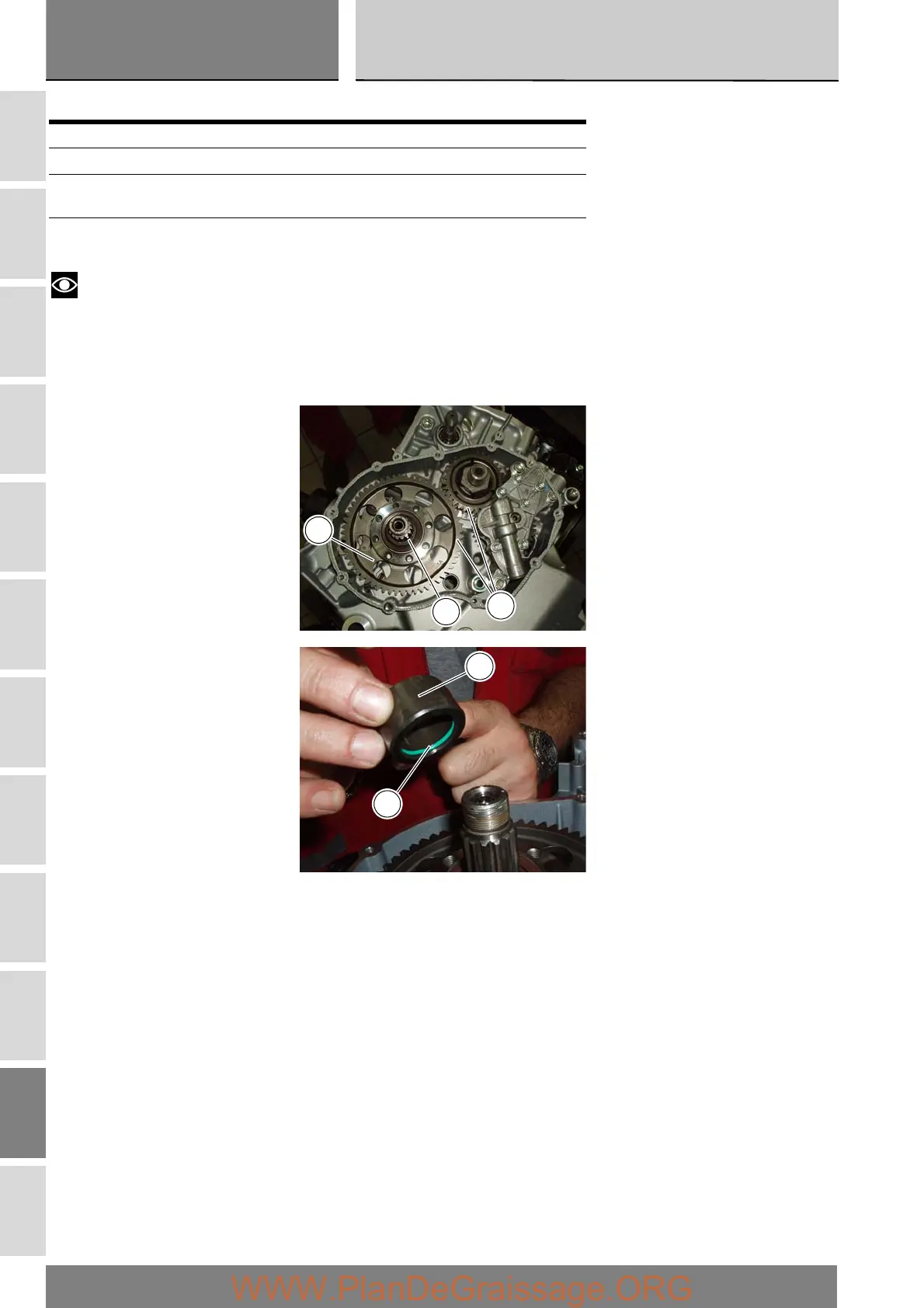

Removal of the primary drive gears
Notes
For clarity, the figures show the engine removed from the frame.
Withdraw from the input shaft the spacer (8) and the O-ring (1) seated against the bearing (6) of the driven gear (C) of the primary
drive (3).
Remove the driven gear (C) of the primary drive (3) complete with the bearings and oil seal.
Operation Section reference
Remove the side fairings E 2
Remove the clutch drum, the clutch
centre and the clutch plate pack
N6.1
Remove the right-hand side crankcase
cover
N6.2
3
8
C
8
1
