section
E 2
151098/1098S - M.Y. 2007 - edition 00
Fairings

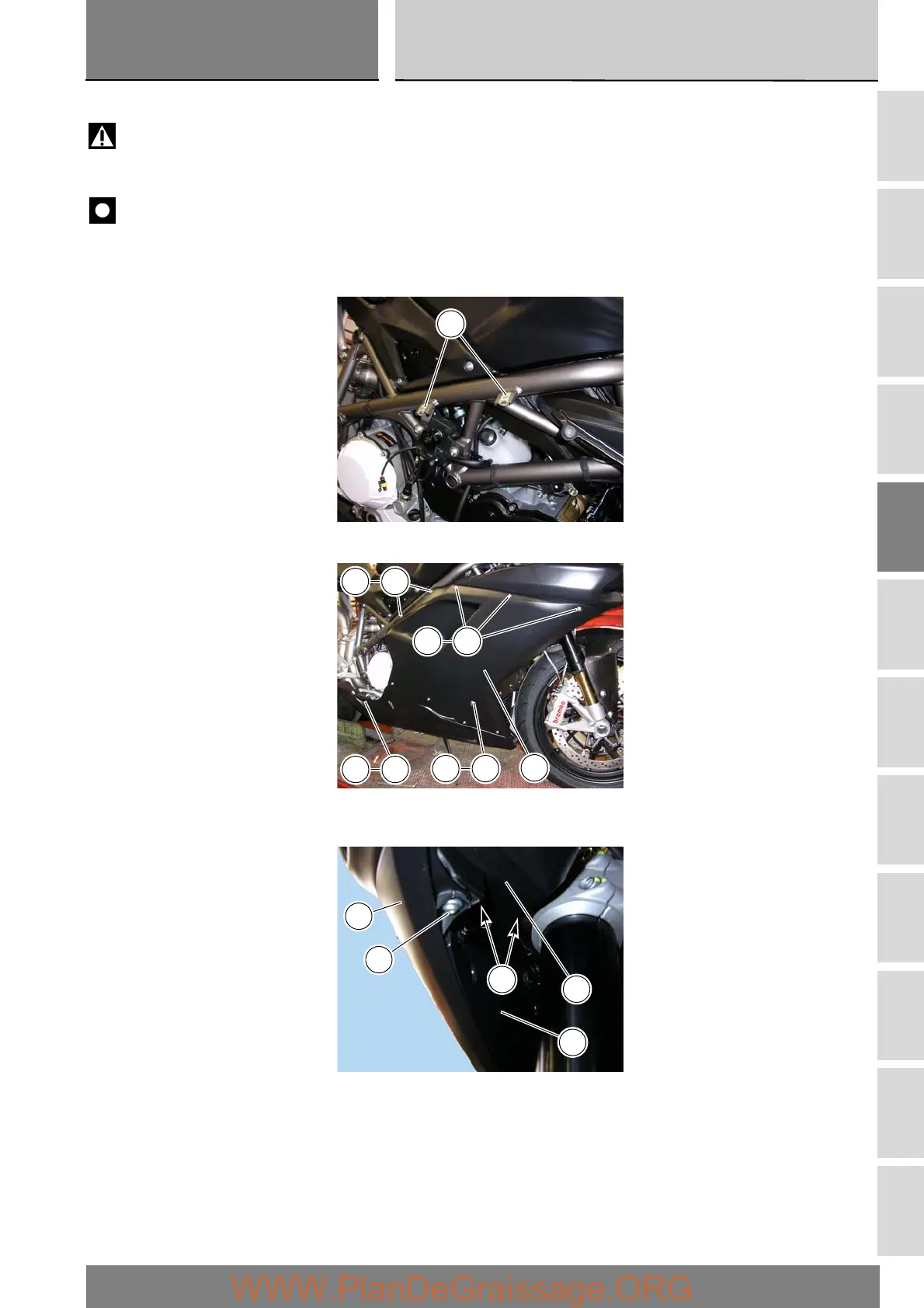

Refitting the side fairings
Warning
Failure to replace or incorrect refitting of any of the components removed could cause parts of the fairing to come loose when
riding and the consequent loss of control of the motorcycle.
Important
To avoid damage to painted parts, always fit the nylon washers (21) and (18) in correspondence with the fixing screws.
Make sure that the clips (13) are fitted to the frame on both sides of the motorcycle.
Fit the screws (22) and (19) securing the right upper fairing (11) to the bike, interposing the washers (21) and (18).
Fit the inner screws (19) securing the splashguard (A) to the inner panel (3). Fit the inner screw (19) securing the front of the right
upper fairing (11).
13
18 19
21 22
21 22
18 19
11
11
19
19
A
3
