E 2
16 1098/1098S - M.Y. 2007 - edition 00
Fairings

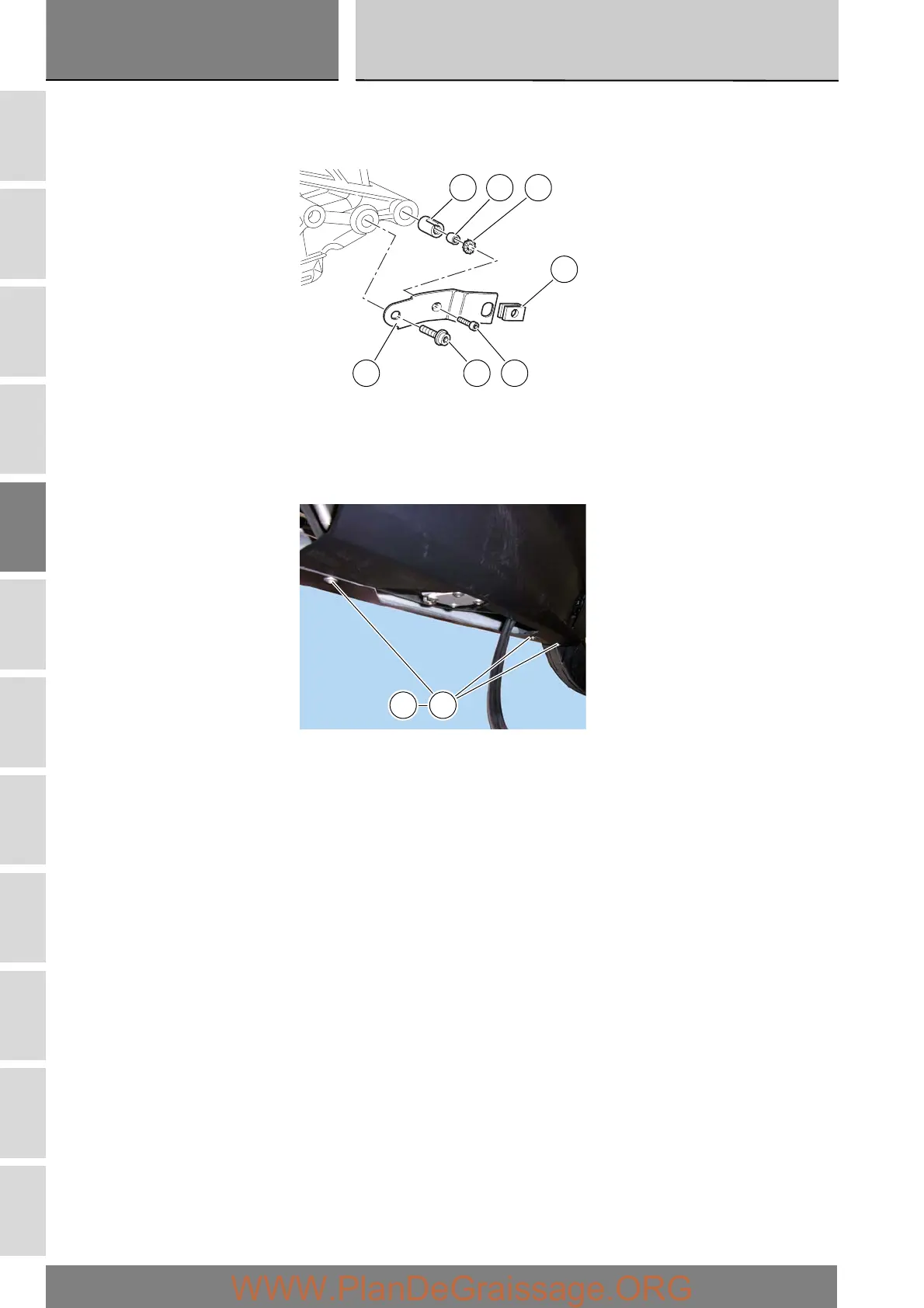

Left fairing mounting bracket
If the bracket (12) was removed, refit, in order, bush (17), bush (15), washer (14), bracket (12) and secure then with the
screws (20) and (10). Tighten the screws (20) and (10) to the specified torque (Sect. C 3). make sure that the clip (13) is fitted.
In the same way, refit the left fairing (4), taking care when inserting the sidestand through the aperture provided in the fairing
panel (6).
Fit the left fairing, attaching it to the front shield and to the right fairing at the bottom.
Fit the screws (22) securing the bottom of the fairing panels, interposing the washers (21).
Tighten all the fairing retaining screws mentioned above to the specified torque (Sect. C 3).
17 15 14
13
201012
21 22
