Ducati 1098 2007 - 2 - Front fork (1098)

A
B
C
D
E
F
G
H
L
M
N
P
section
G 2
111098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

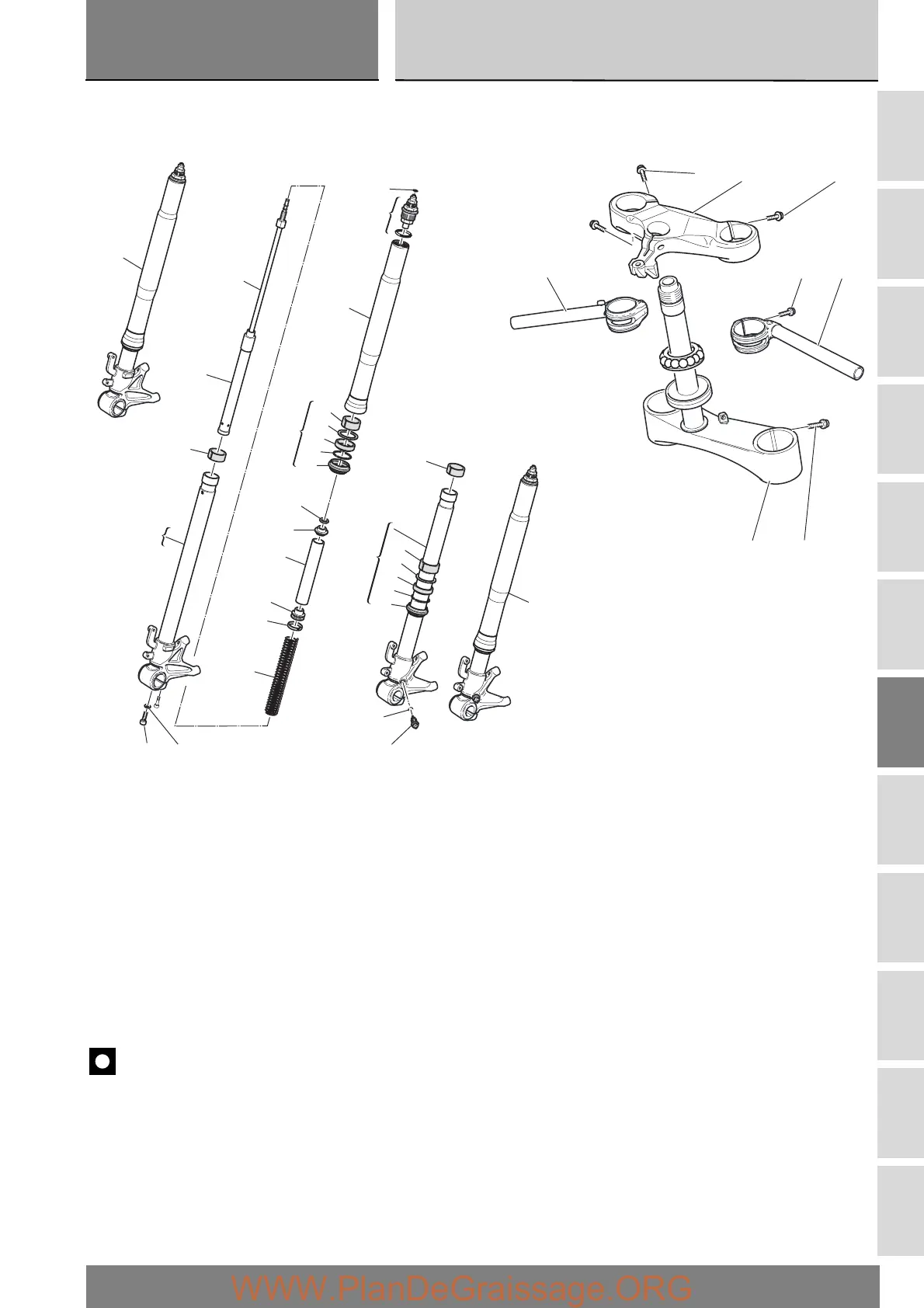

2 - Front fork (1098)
1Bolt
2Bolt
3 Top yoke
4 Bottom yoke
5 Left fork leg assembly
6 Right fork leg assembly
7 Locating ring
8 Damper assembly
9 Oil seal
10 Spring
11 Upper spacer
12 Spacer
13 Washer
14 Top cap assembly
15 Circlip
16 Washer
17 Dust cap
18 Bolt
19 Adjuster screw
20 Special washer
21 Right inner tube assembly
22 Dust cap
23 Oil seal
24 Retaining ring
25 Bush
26 Outer tube
27 Bush
28 Left inner tube assembly
29 Ring
30 Bolt
31 Left handlebar
32 Right handlebar
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
6
27
21
16
8
13
12
11
17
9
26
25
24
21
23
29
22
15
14
10
18
25
24
28
27
5
20
19
23
29
22
7
4 2
3231 30
131
