section
F 4
22 1098/1098S - M.Y. 2007 - edition 00
Controls - Devices

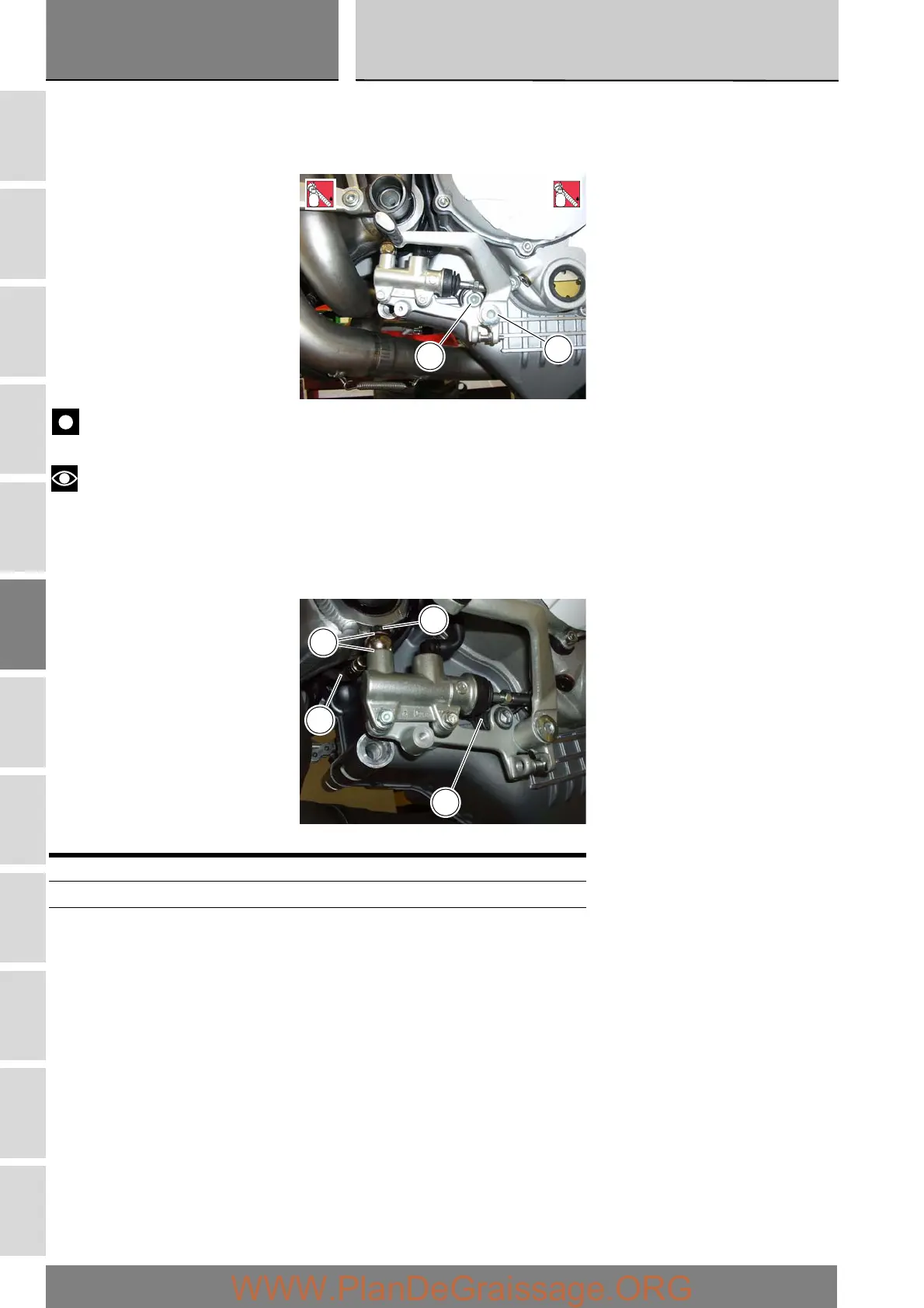

Refitting the rear brake control
To refit the assembly, carry out the removal operations in reverse order, applying the recommended threadlocker to the bolts (2)
and (9).
Important
When refitting the brake master cylinder to the engine, take care to position the brake lever return spring (4) correctly.
Notes
If the master cylinder-caliper hose (27) and the master cylinder–reservoir hose (21) are to be renewed, take care to position the
hose unions on the master cylinder correctly.
Install the sealing washers (23) on either side of the end fitting of the hose (27) and connect to the master cylinder.
Position it as shown in the figure and tighten the banjo bolt (22) to the specified torque (Sect. C 3).
Operation Section reference
Fill the brake circuit D 4
Refit the right-hand fairing E 2
2
LOCK
5
LOCK
9
2
22
27
23
4
