N 6.1
1131098/1098S - M.Y. 2007 - edition 00
Engine

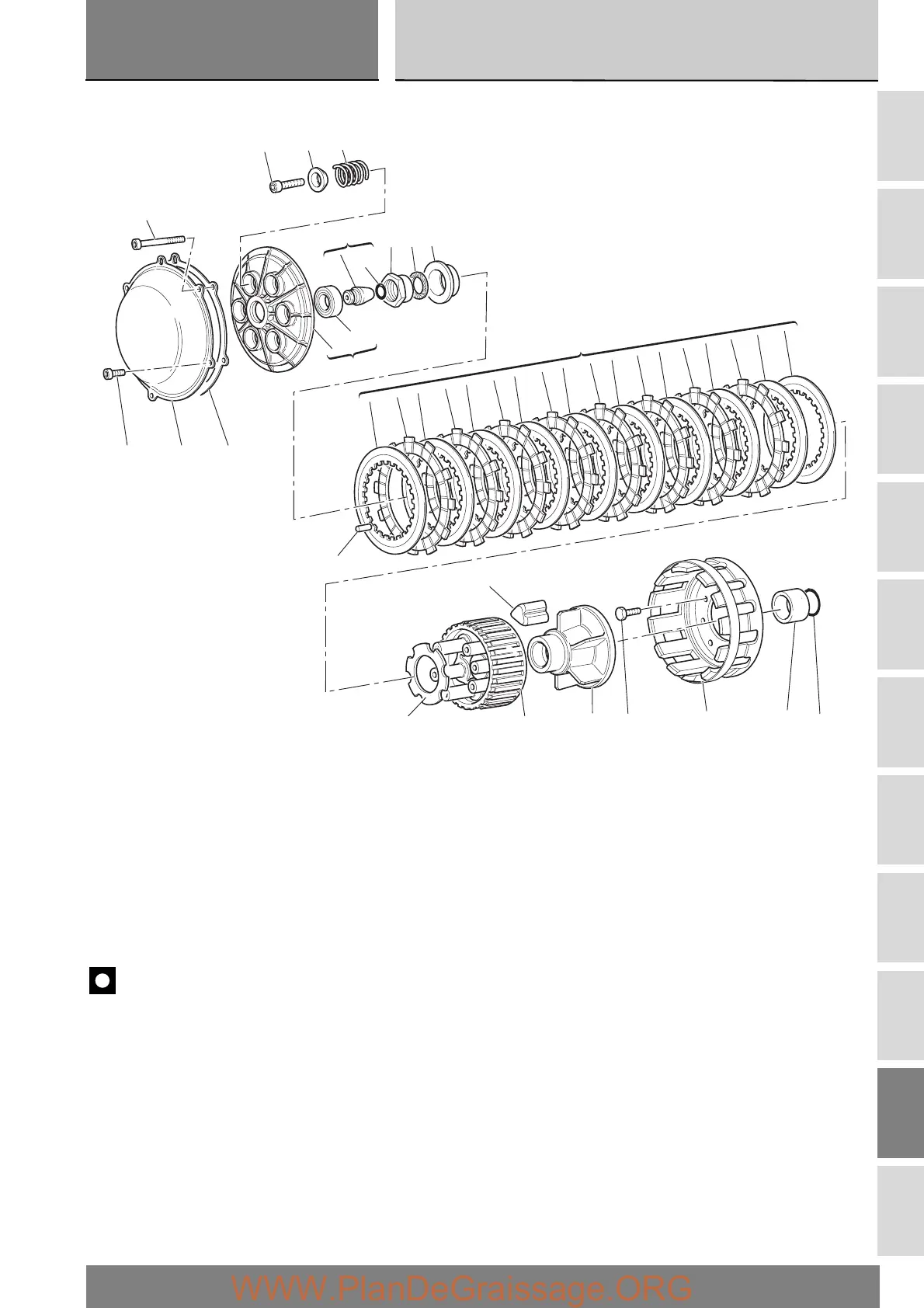

6.1 - Clutch assembly: clutch
1 Clutch spring
2 Collar
3 Clutch lifter
4Bolt
5 Lock washer
6 Cush drive rubber
7 Cush drive hub
8 Clutch plates
9 Thrust washer
10 Clutch centre
11 Bolt
12 Pressure plate
13 Clutch drum
14 Bearing
15 O-ring
16 Spacer
17 O-ring
18 Nut
19 Locating dowel
20 Bush
21 Clutch cover gasket
22 Clutch cover
23 Bolt
24 Bolt
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
8
6
11 13 16 15
19
7
10
9
14
12
4 2 1
520
17
3 18
23 22 21
24
