L 7
311098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

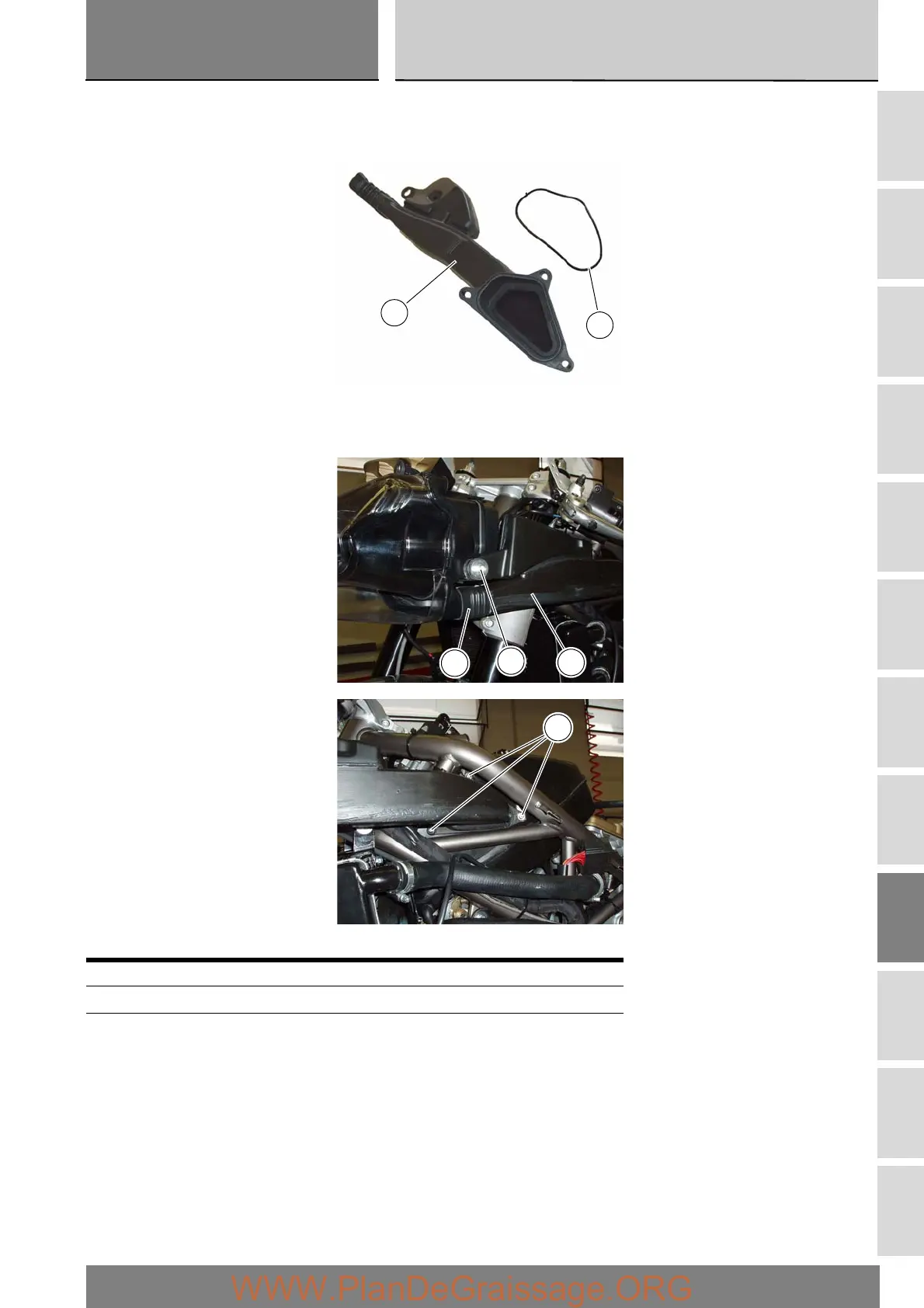

Refitting the air filters
If removed, refit the seals (8) to the air scoops (6) and (10), positioning the locating nib in the relative motch on the air scoop.
Reposition the hoses (9) and (11) with the air scoops (6) and (10) on the headlight assembly.
Insert the bolts (1) securing the air scoppos to the healdight assembly and the bolts (7) securing the air scoops to the airbox.
Tighten the bolts (1) and (7) to the specified torque (Sect. C 3, Frame torque settings).
Operation Section reference
Refit the headlight shell E 1
Refit the fairings E 2
