Fairings

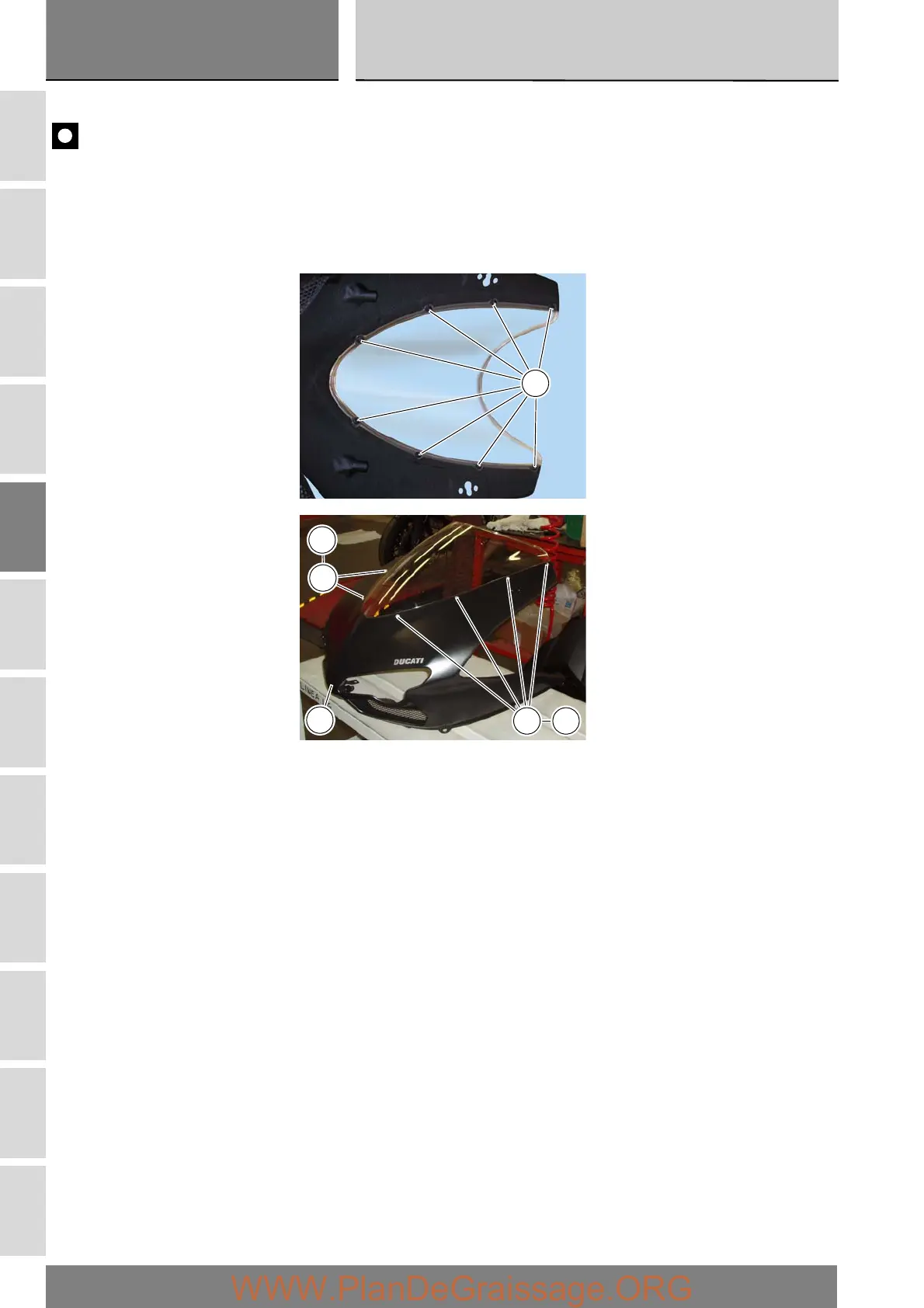

Refitting the headlight shell
Important
On refitting the headlight shell, always refit the nylon washers (11) in correspondence with the retaining bolts to avoid damaging
the painted parts and the Plexiglas windshield.
During reassembly, make sure that the threaded inserts (10) are correctly positioned on the headlight shell.
To prevent the bolts (12) and washers (11) from moving while fitting them, hold the inserts (10) pressed against the headlight
shell (1).
10
11
12
1112
1
