section
D 4
131098/1098S - M.Y. 2007 - edition 00
Use and maintenance
Checking valve clearances
Proceed as described in Sect. N 4.1.

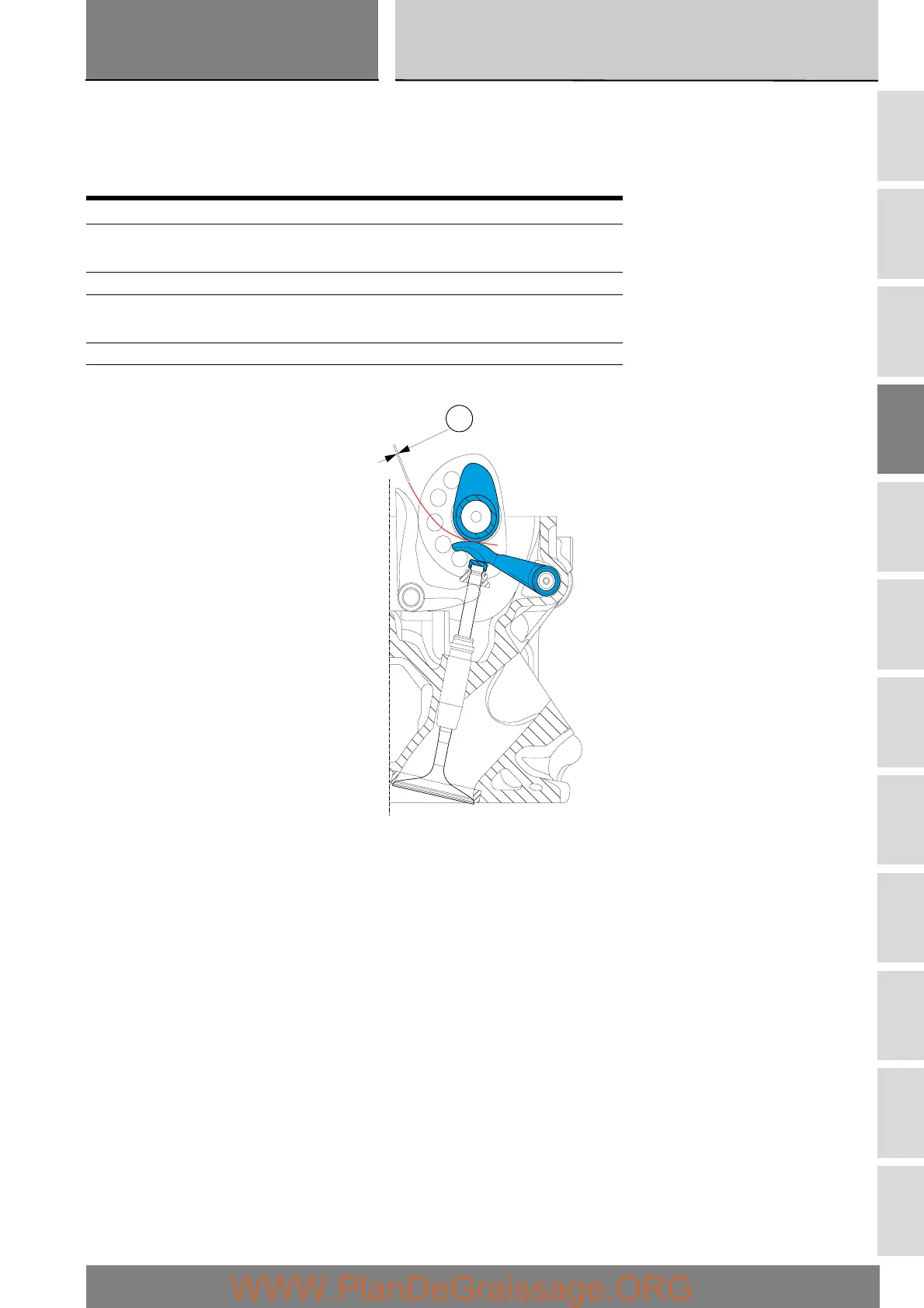

With the valve in the rest position, slide a feeler gauge between rocker arm and the cam to measure the clearance:
The clearances must be within the specified limits:
Opening rocker arm
Intake:(A)
Operation 0.13 to 0.18 mm
Checking clearance 0.10 to 0.25 mm
Exhaust:(A)
Operation 0.13 to 0.18 mm
Checking clearance 0.10 to 0.25 mm
A
