1011098/1098S - M.Y. 2007 - edition 00
Engine
Disassembly of the cylinder/piston

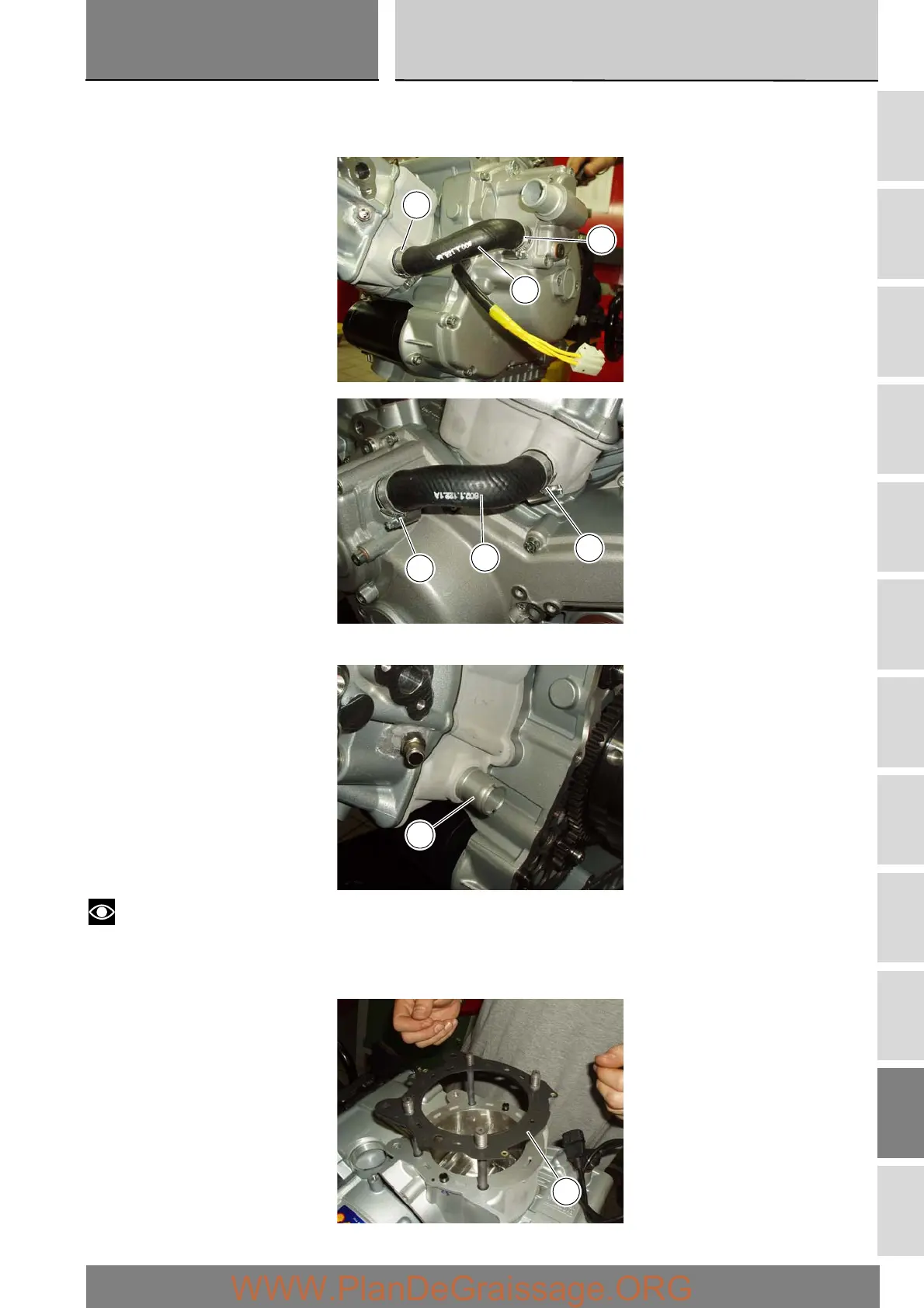

Loosen the clamps (7) and remove the hoses (8) and (9) from the cylinder barrels (10) and from the left-hand crankcase cover.
Unscrew the unions (6).
Notes
This operation is described with the engine removed from the frame and the cylinder head removed (Sect. N 4.5).
Remove the cylinder head gasket (11) from the cylinder barrel.
8
7
7
9
7
7
6
11
