Ducati 1098 2007 - Clutch Assembly: Right-Hand Side Crankcase Cover

A
B
C
D
E
F
G
H
L
M
N
P
section
N 6.2
126 1098/1098S - M.Y. 2007 - edition 00
Engine

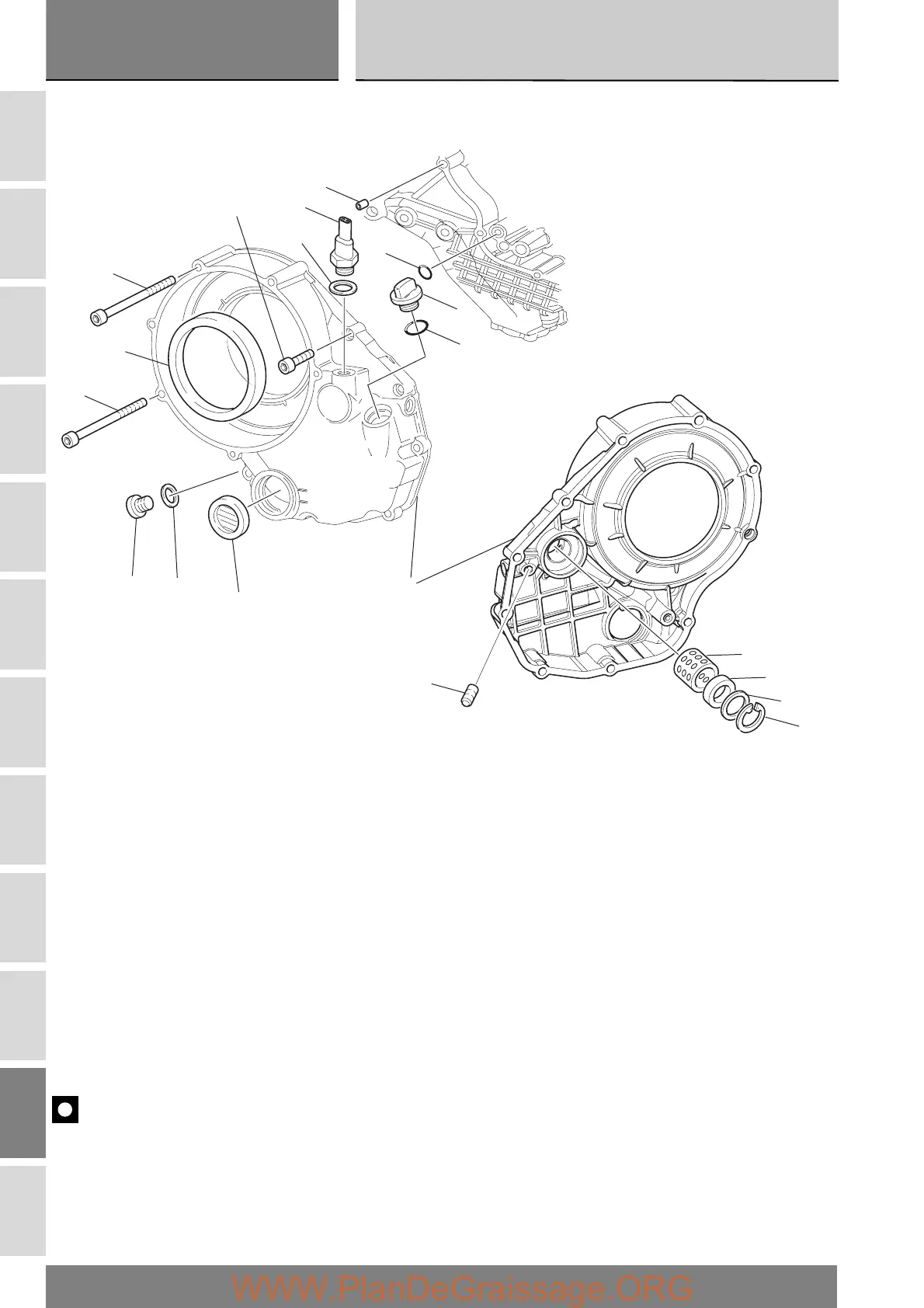

6.2 - Clutch assembly: right-hand side crankcase cover
1 Locating dowel
2O-ring
3Plug
4 Oil level plug
5Bolt
6Ring
7O-ring
8Seal
9 Switch
10 Bush
11 Oil seal
12 Shim
13 Circlip
14 Right-hand side crankcase cover
15 Bolt
16 Plug
17 Seal
18 Grub screw
19 Bolt
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
14
10
11
12
13
1
9
15
19
6
4
17
16
5
8
2
3
7
18
1
