section
N 8
166 1098/1098S - M.Y. 2007 - edition 00
Engine

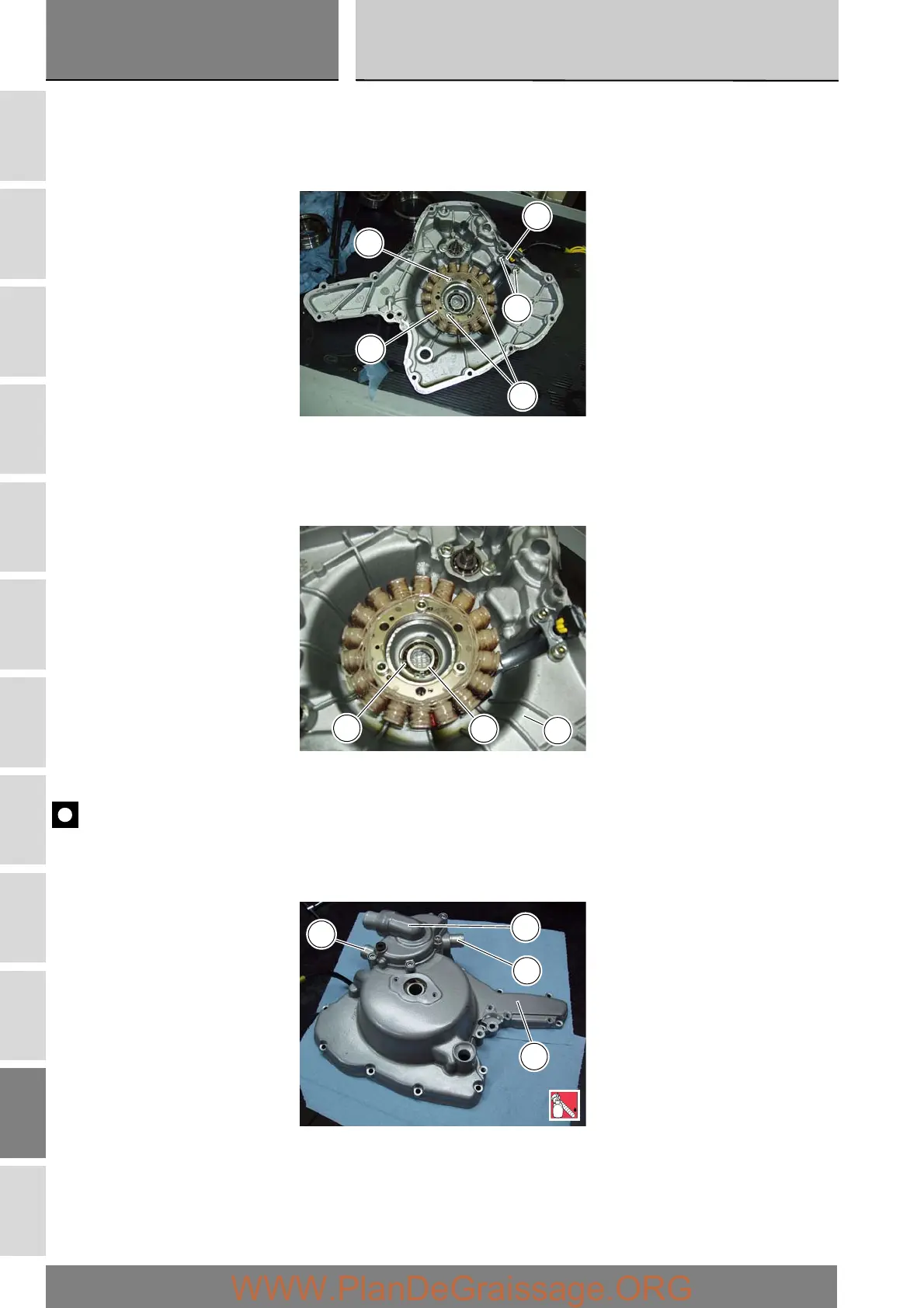

Disassembly of the left-hand crankcase cover
Undo the three stator retaining bolts (25) and the two cable guide bracket (31) retaining bolts (32) from inside the lh crankcase
cover.
Remove the stator (33) and the cable guide (31).
The lh crankcase cover is fitted with a bearing (27), held in place by circlip (28), which locates on the end of the crankshaft.
Remove the circlip (28) with circlip pliers.
Remove the bearing (27) using a universal puller.
Be careful when fitting the new bearing (27) to ensure it is positioned with the shielded side facing away from the cover.
Secure the bearing with the circlip (28), ensuring that it is correctly fitted in its seat in the lh crankcase cover (29).
Unscrew the horizontal and vertical cylinder coolant inlet unions (2).
When fitting new components, apply the recommended threadlocker and tighten to the specified torque (Sect. C 3).
Important
The unions (2) may also be removed without removing the lh crankcase cover (29) from the engine.
Disassemble the components of the water pump (B) as described in (Sect. N 3.3).
25
33
25
32
31
28
27
29
6
LOCK
B
2
2
29
