N 8
1671098/1098S - M.Y. 2007 - edition 00
Engine

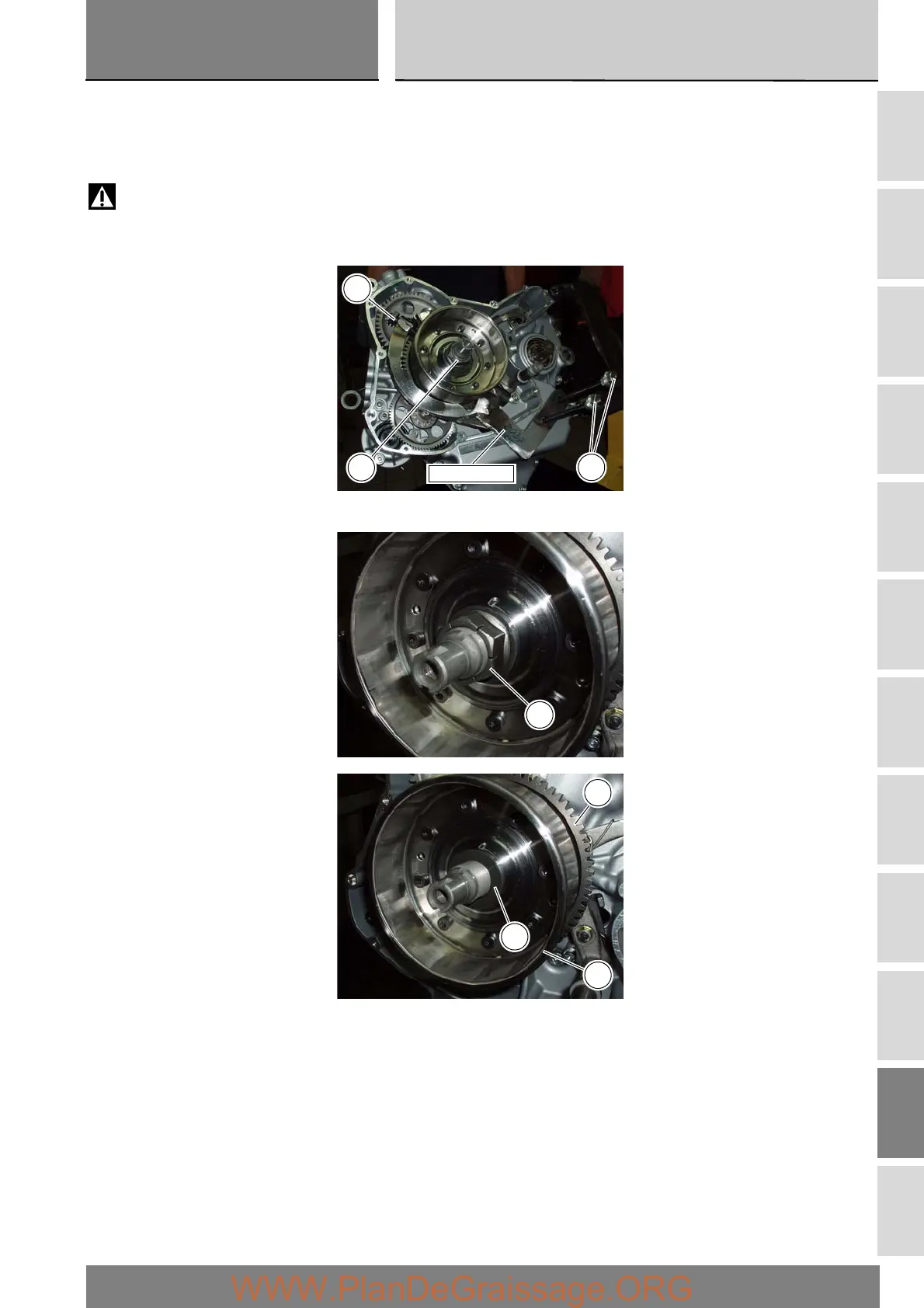

Removal of the flywheel/alternator assembly
Use the service tool no. 88713.2874 fixed on the M10 sidestand fixing holes (D).
Secure the tool to the flywheel with the bolt (E).
Unscrew the alternator/flywheel retaining nut (15).
Warning
While unscrewing the nut, apply axial pressure to the wrench socket to avoid damage or injury in the event of the wrench
suddenly slipping off the nut.
Remove the nut (15), the Belleville washer (16) and the flywheel assembly (23) with the driven gear (21) from the crankshaft.
D
E
15
88713.2874
15
16
23
21
