section
G 4
331098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

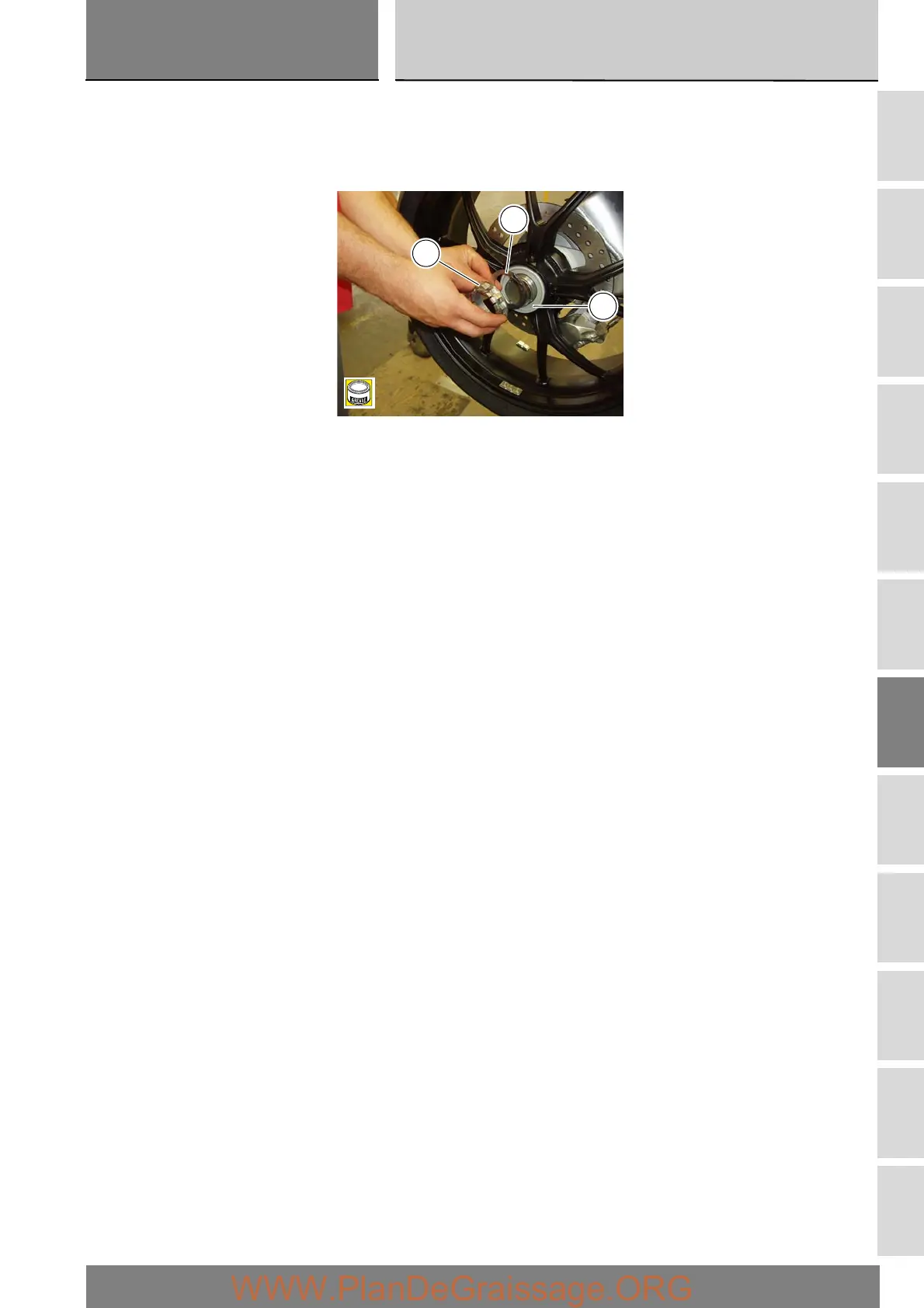

Refitting the rear wheel
Clean the mating surfaces and grease the threaded end of the stub axle with the recommended grease.
Fit the wheel, aligning it with the stub axle and the driving pins.
Fit the tapered bush (3) and the washer (2), and hand tighten the wheel nut (1).
Tighten the wheel nut to the specified torque (Sect. C 3). Check that the hole in the nut is aligned with one of the holes in the
stub axle.
If not, tighten the nut slightly until the holes are aligned.
2
1
3
B
