Ducati 1098 2007 - Removal of the Valve Rocker Arms

A
B
C
D
E
F
G
H
L
M
N
P
section
N 4.5
811098/1098S - M.Y. 2007 - edition 00
Engine
Removal of the valve rocker arms

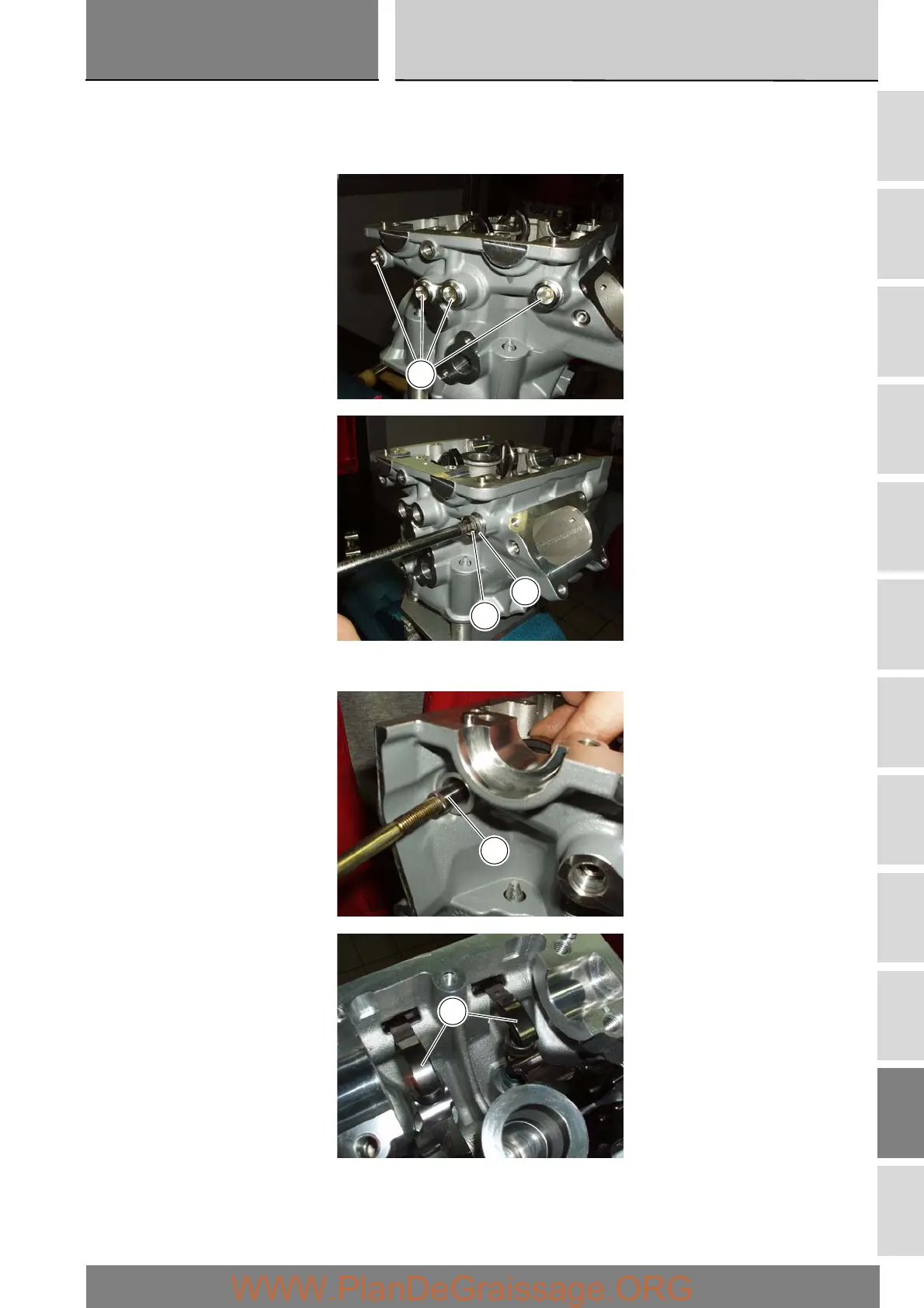

With the cylinder head in the condition described in the previous paragraph, remove the rocker arms.
Unscrew the eight plugs (12) and recover the seals (15).
Using an M5 bolt, withdraw the shafts (2) of the opening rocker arms (3) on the exhaust and intake sides.
Remove the opening rocker arms (3).
12
15
12
2
3
