section
F 2
8 1098/1098S - M.Y. 2007 - edition 00
Controls - Devices

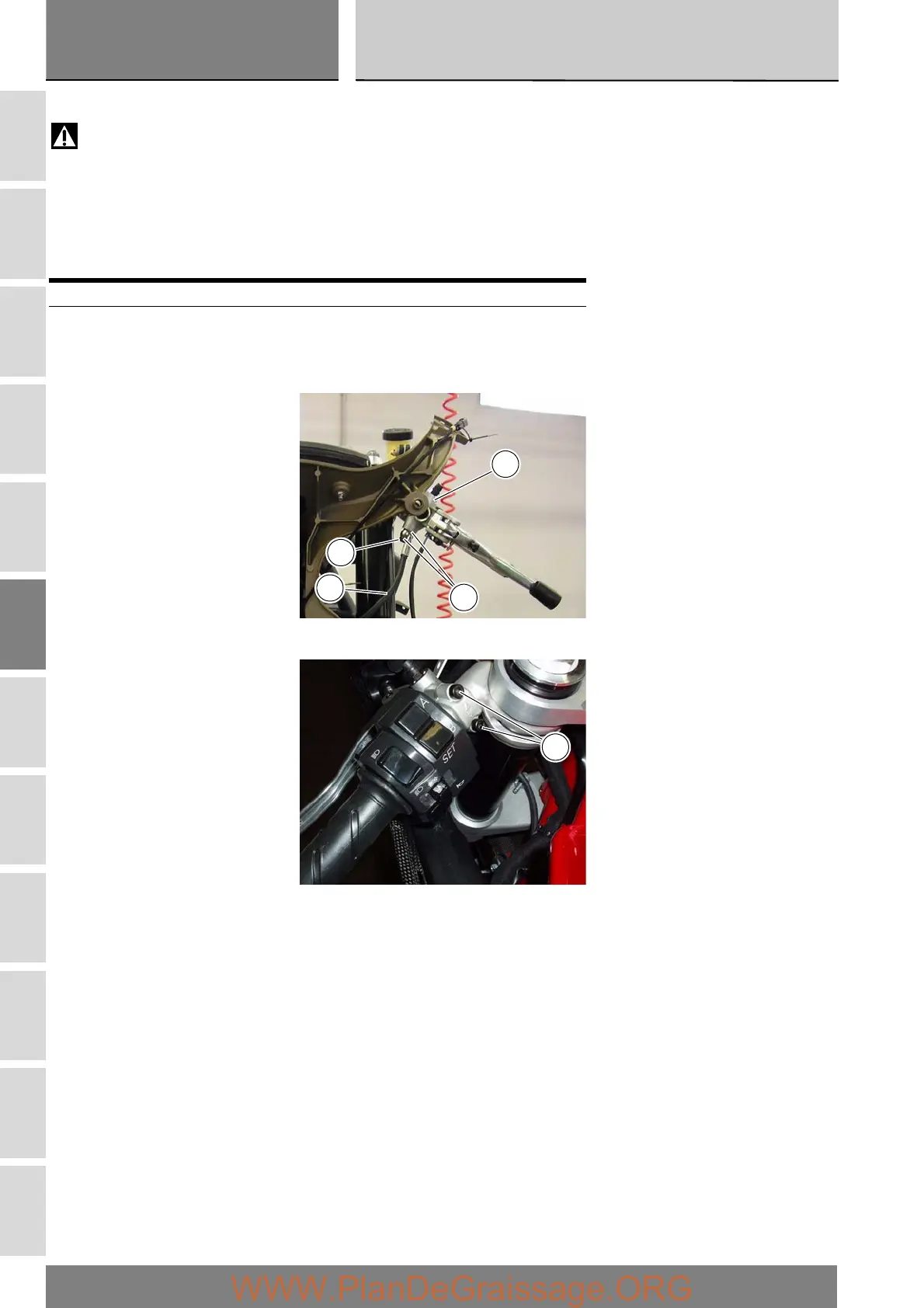

Removal of the clutch master cylinder assembly
Warning
The clutch master cylinder manufacturer advises against servicing of the internal parts of clutch master cylinder (1) due to
the safety-critical nature of this component. Incorrect overhaul of this critical safety component can endanger the rider and
passenger.
Maintenance operations of the master cylinder are limited to replacing the following parts: control lever, reservoir unit, and master
cylinder fasteners.
Unscrew the banjo bolt (16) recovering the sealing washers (17), to release the clutch master cylinder assembly (1) from the
clutch control hose (6).
Unscrew the two clamp bolts (18) securing the clutch master cylinder assembly to the handlebar.
Refer to the exploded view at the beginning of this section for indications on disassembly and replacement of the brake master
cylinder components.
Operation Section reference
Drain the clutch system D 4
17
16
6
1
18
