N 2.1
10 1098/1098S - M.Y. 2007 - edition 00
Engine
2.1 - Lubrication system: oil pump

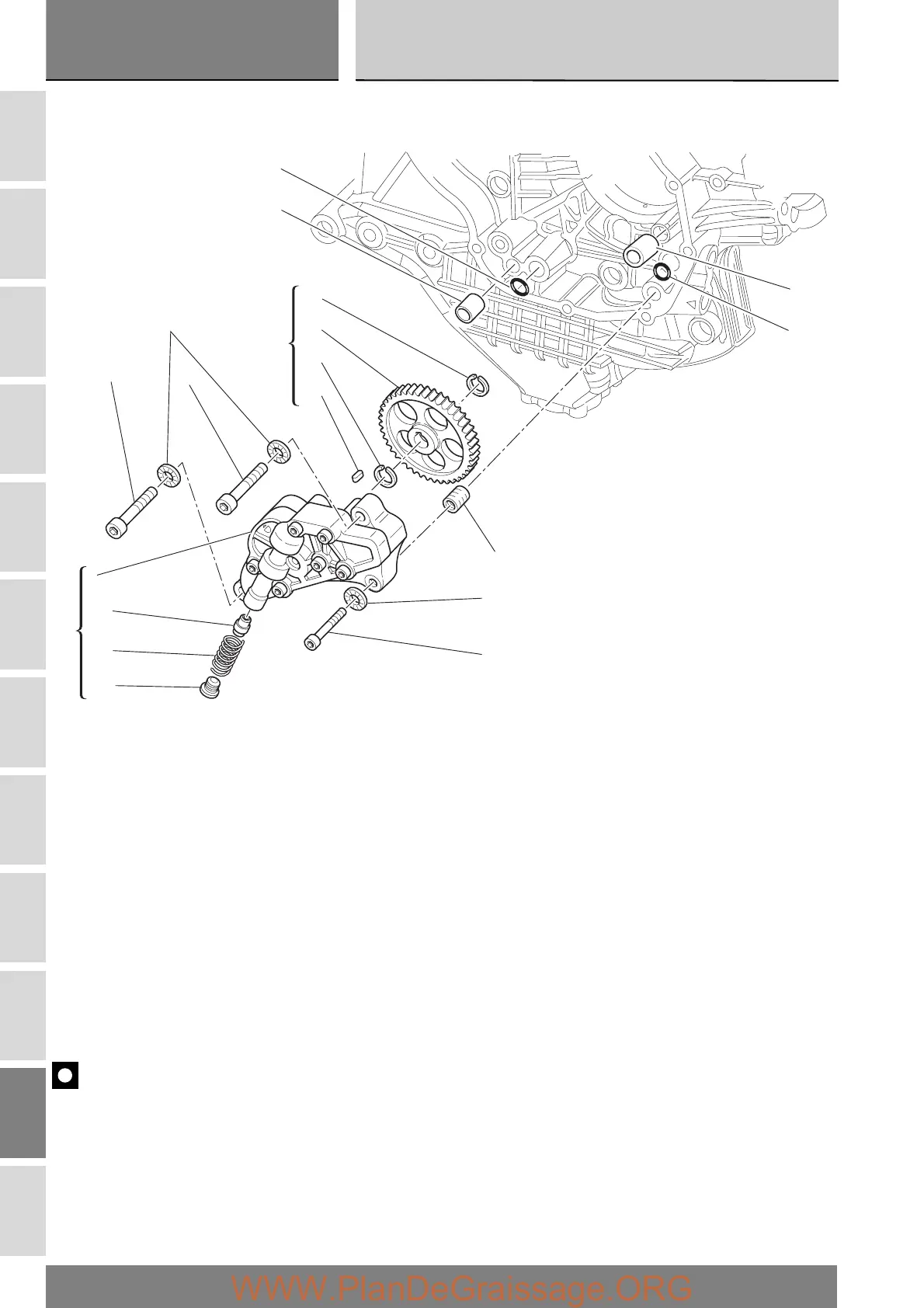

1 Complete oil pump assembly
2O-ring
3 Circlip
4O-ring
5 Pump body
6 Circlip
7 Reducer bush
8 Spring washer
9Bolt
10 Bolt
11 Spring washer
12 Pump drive gear
13 Key
14 By-pass plug
15 Locating dowel
16 By-pass spring
17 By-pass valve
Important
Bold reference numbers in this section identify parts not shown in the figures next to the text. Refer to the exploded view
diagram.
17
16
14
1
1
3
12
6
13
8
9
4
15
2
15
10
11
7
9
1
