Frame

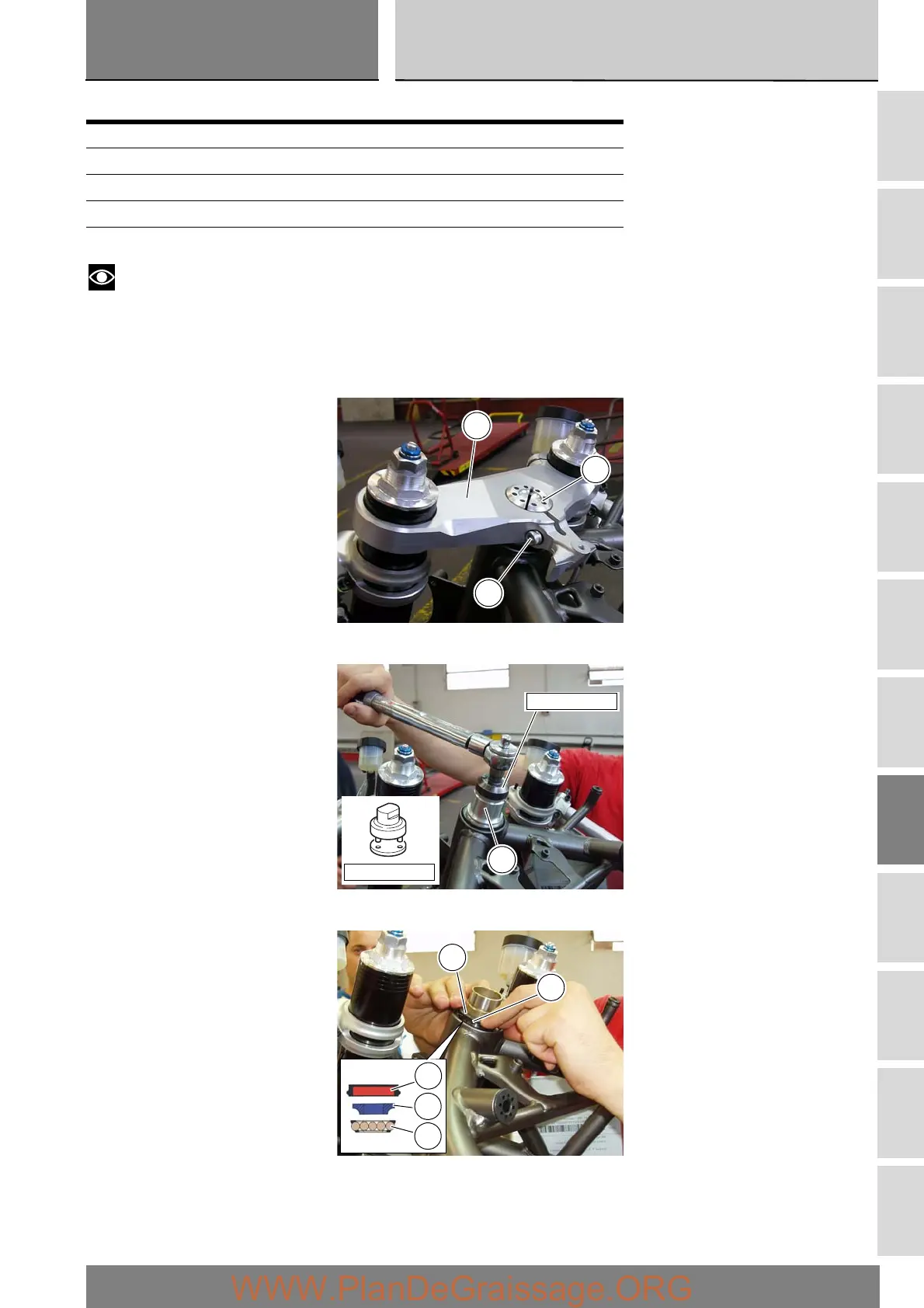

Removal of the steering head components
Notes
All parts fitted to the top and bottom yokes, wires and control cables included, can remain on motorcycle provided they do not
hinder the following operations.
Loosen the bolt (6) securing the top yoke (7) to the steering stem nut (4).
Remove the top yoke (7).
Using tool part no. 88713.1058 loosen the steering stem nut (4) and remove it from the steering stem.
Slide the oil seal (2), the inner race (A) and the ball race (B) of the upper bearing (3) off the steering stem.
Operation Section reference
Remove the side fairings E 2
Remove the headlight shell E 1
Remove the fork legs G 2
Remove the steering damper H 3
4
7
6
88713.1058
4
88713.1058
2
A
B
2
3
