section
N 9.1
182 1098/1098S - M.Y. 2007 - edition 00
Engine
9.1 - Crankcase assembly: external components
1 Oil breather valve
2O-ring
3Seal
4 Neutral switch
5 Cylinder barrel/head stud
6 Nipple
7 By-pass spring
8 Nipple
9Plug
10 Aluminium gasket
11 Nut
12 Lock washer
13 Timing gear pair
14 Key
15 Key
16 Bolt
17 Bolt
18 Washer
19 Starter idler gear
20 Washer
21 Gear shaft
22 O-ring
23 Engine sensor
24 Shim
25 Bolt
26 Washer
27 Aluminium gasket
Important

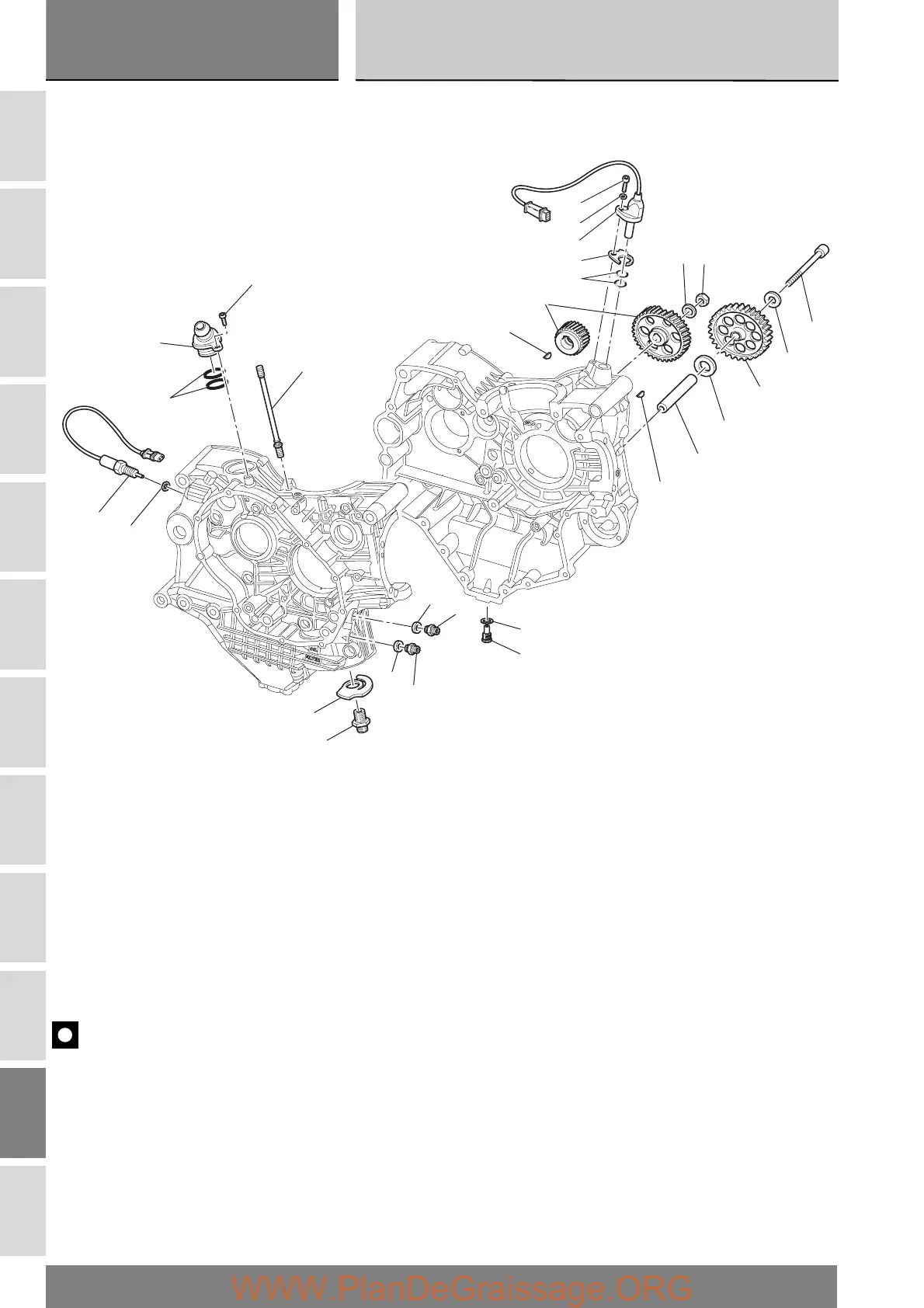

Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
3
4
2
1
17
5
21
20
19
18
16
13
14
15
22
24
23
26
25
12
11
9
10
27
8
27
8
7
6
