D 4
14 1098/1098S - M.Y. 2007 - edition 00
Use and maintenance

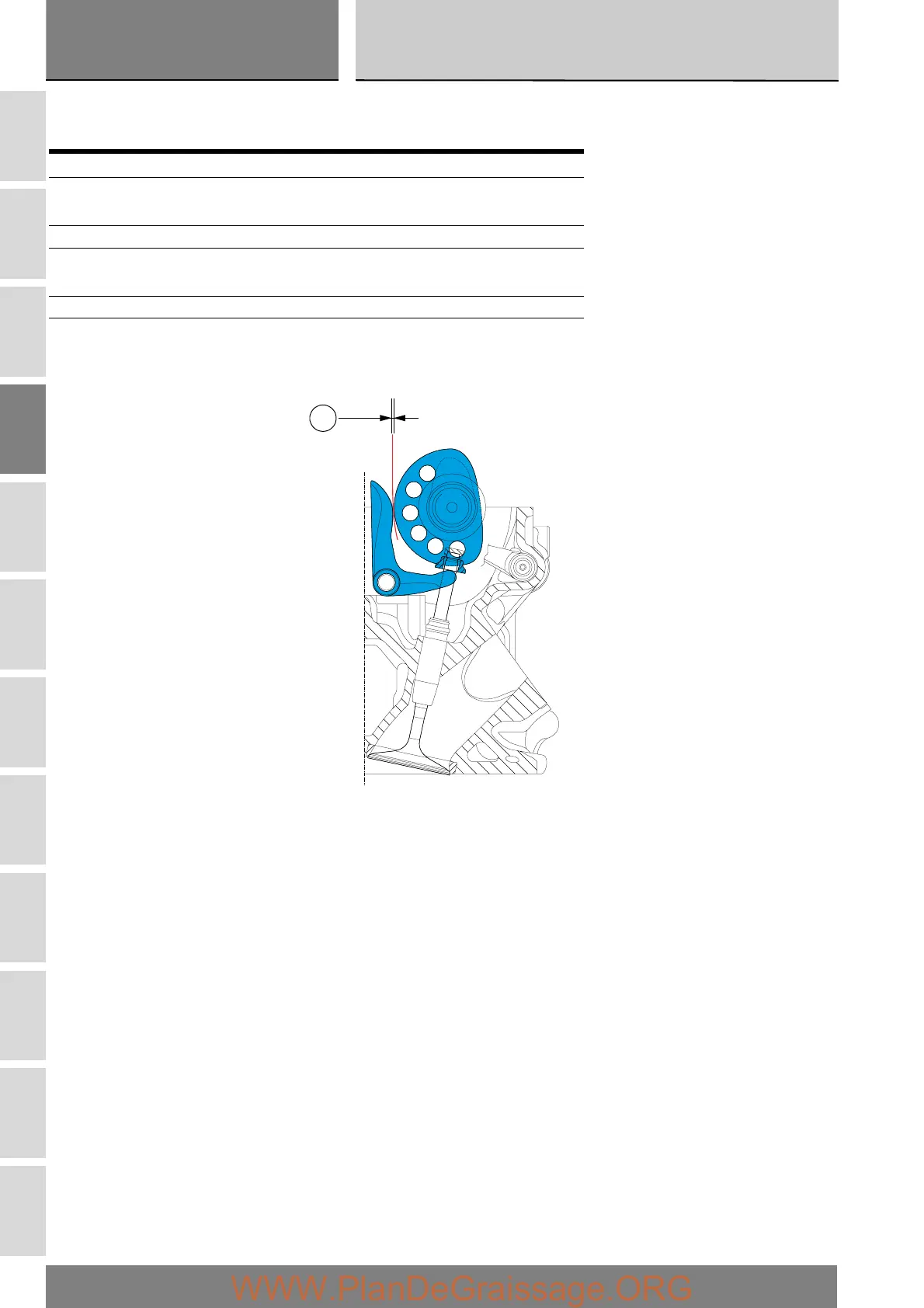

With the valve in the rest position, slide a feeler gauge between the closing rocker arm and the closing shim to measure the
clearance:
If the clearances measured are outside the specified limits, measure the value and adjust as required (Sect. N 4.1).
Adjusting the valve clearances
Proceed as described in Sect. N 4.1.
Closing rocker arm
Intake:(B)
Operation 0.05 to 0.10 mm
Checking clearance 0.05 to 0.25 mm
Exhaust:(B)
Operation 0.05 to 0.10 mm
Checking clearance 0.05 to 0.25 mm
B
