section
N 3.2
20 1098/1098S - M.Y. 2007 - edition 00
Engine

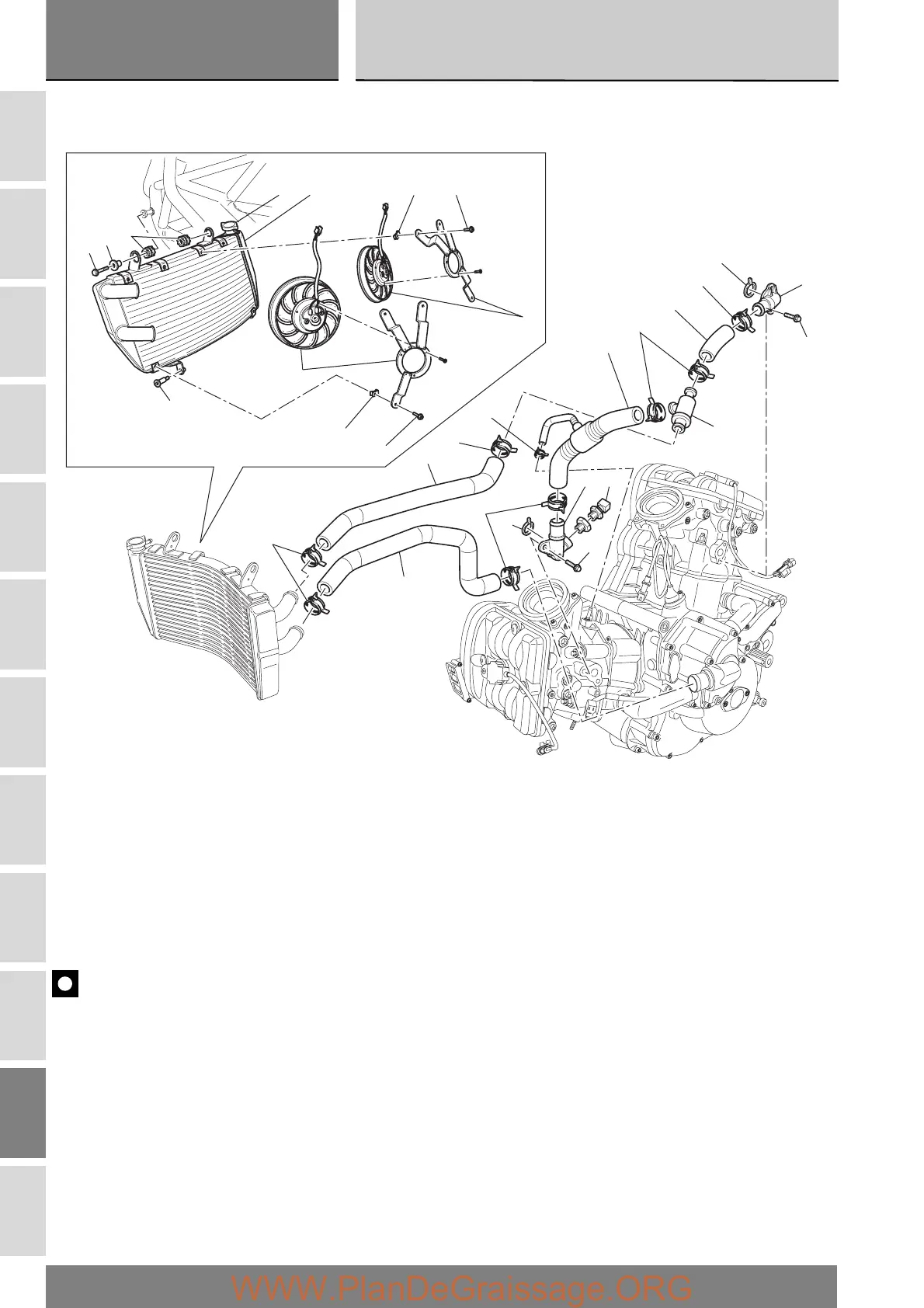

3.2 - Cooling system: radiator
1 Horizontal coolant outlet union
2 Pump/radiator hose
3Bolt
4 Spacer
5 Rubber
6 Radiator cap
7 Spacer
8Bolt
9 RH cooling fan
10 Radiator
11 LH cooling fan
12 Bolt
13 Special screw
14 Clamp
15 Radiator/thermostat hose
16 Thermostat
17 Clamp
18 Thermostat/cylinder head hose
19 Seal
20 Vertical coolant outlet union
21 Coolant temperature sensor
22 Thermostat/cylinder head hose
Important
Bold reference numbers in this section identify parts not shown in the figures next to the text. Refer to the exploded view
diagram.
13
3
4
5
14
2
14
19
15
14
17
18
14
14
21
12
1
19
20
12
22
16
6 10 7 8
7
8
9
11
1
