Engine

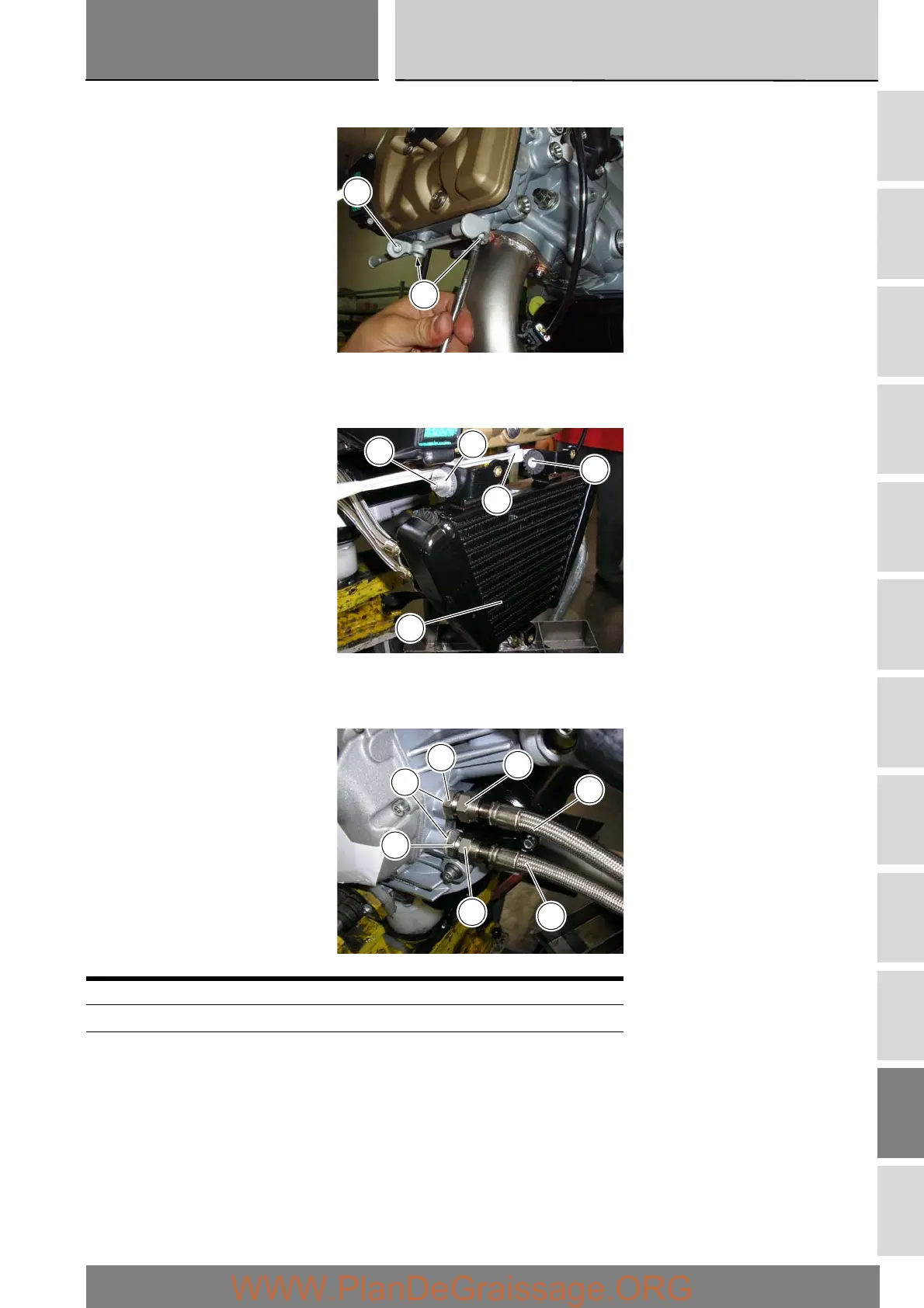

If removed, refit the support (10) securing it to the horizontal cylinder head with the two bolts (9).
Fit the oil cooler (1), firsts inserting it in the pin (B) of the support (10).
Fit the spacer (3) and the bolt (11).
Tighten the bolt (11) to the specified torque (Sect. C 3).
Locate the gaskets (4) and the nipples (5) in their seats in the crankcase.
Tighten the nipples (5) to the specified torque (Sect. C 3).
Locate the feed and return hoses (7) on the crankcase and tighten the nuts (A).
Operation Section reference
Fill the lubrication system D 4
Refit the side fairings E 2
