48 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

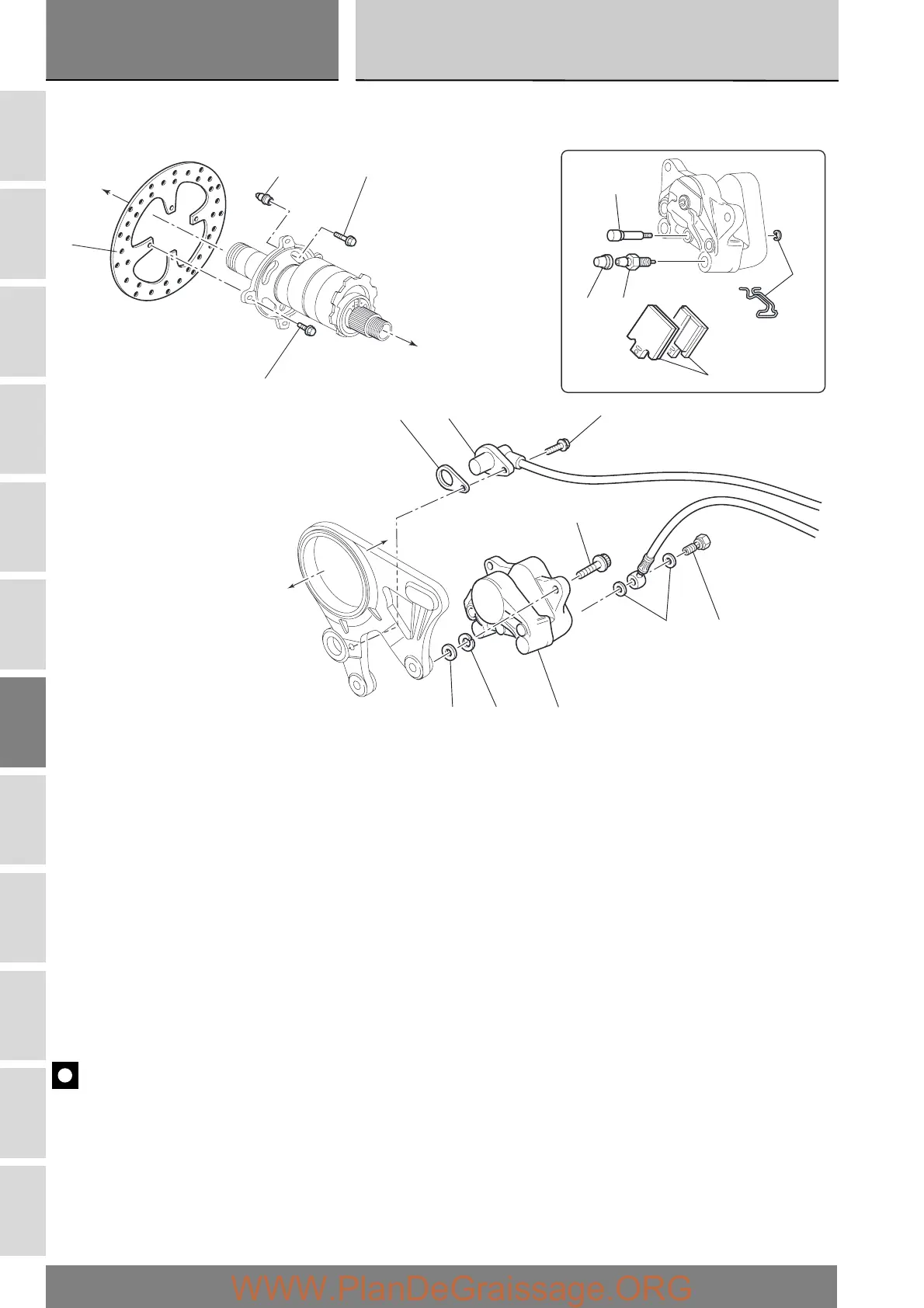

6 - Hydraulic rear brake
1Bolt
2 Locating dowel
3Bolt
4 Rear brake disc
5 Spacer
6 Speed sensor
7Bolt
8Bolt
9 Spring washer
10 Washer
11 Rear brake caliper
12 Sealing washer
13 Banjo bolt
14 Dust cap
15 Bleed valve
16 Pad retaining pin and clip
17 Pair of brake pads
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
A
B
16
14 15
17
16
10 9 11
12
8
65
13
7
A
12
3
4
B
1
