Ducati 1098 2007 - Cooling System: Water Pump

A
B
C
D
E
F
G
H
L
M
N
P
section
N 3.3
32 1098/1098S - M.Y. 2007 - edition 00
Engine
3.3 - Cooling system: water pump
1Bolt
2 Washer
3 Circlip
4 Washer
5 Outer bearing
6 Inner bearing
7 Spacer
8 Seal seat
9 Mechanical seal
10 Water pump impeller
11 Locating dowel
12 Water pump cover assembly
13 Bolt
14 Plug
15 Seal
16 Left-hand side crankcase cover
Important

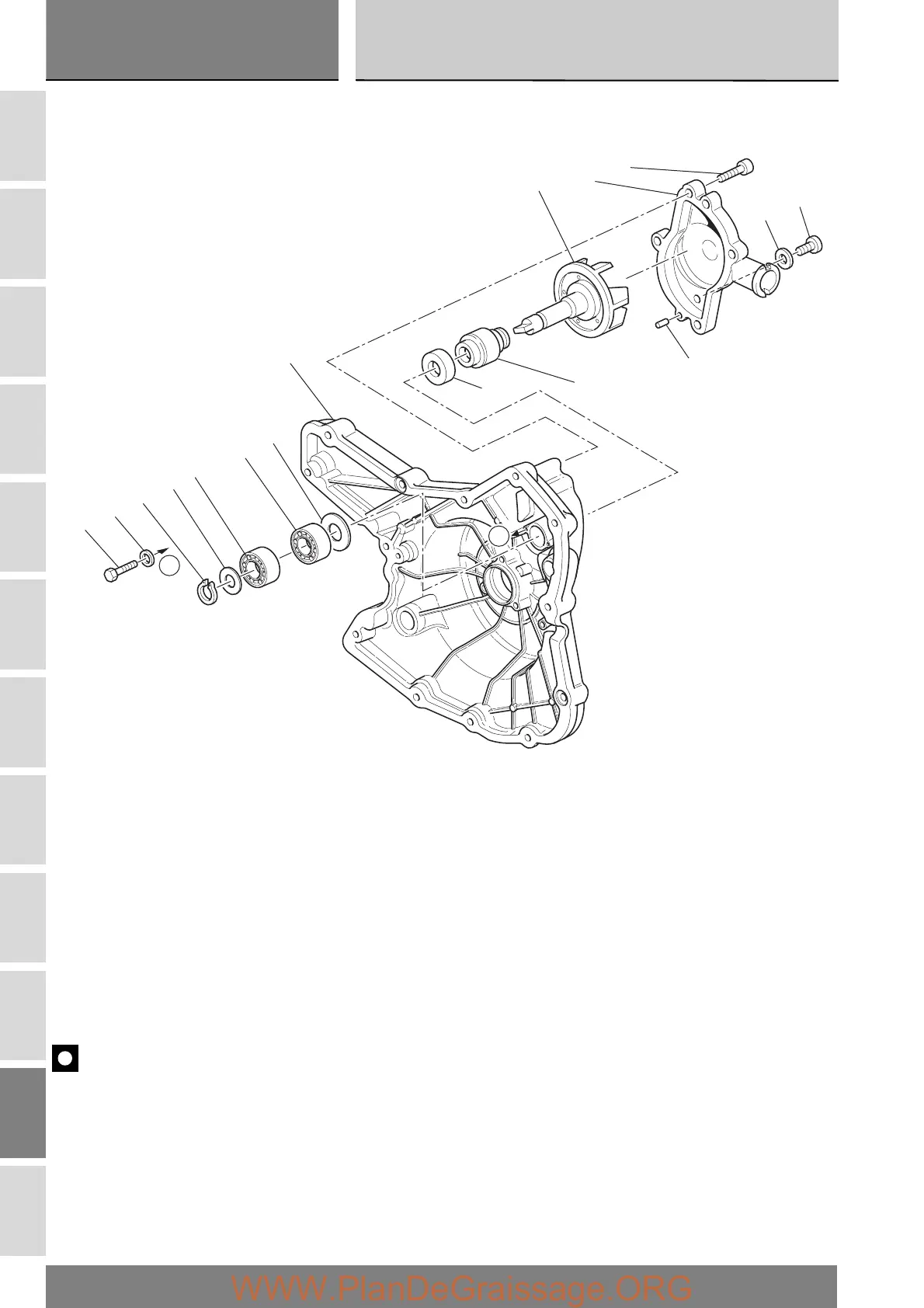

Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
5
4
8
9
11
16
10
12
13
15
14
2
1
3
6
7
