Ducati 1098 2007 - Removal of the Throttle Body

A
B
C
D
E
F
G
H
L
M
N
P
section
L 6
151098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System
Removal of the throttle body

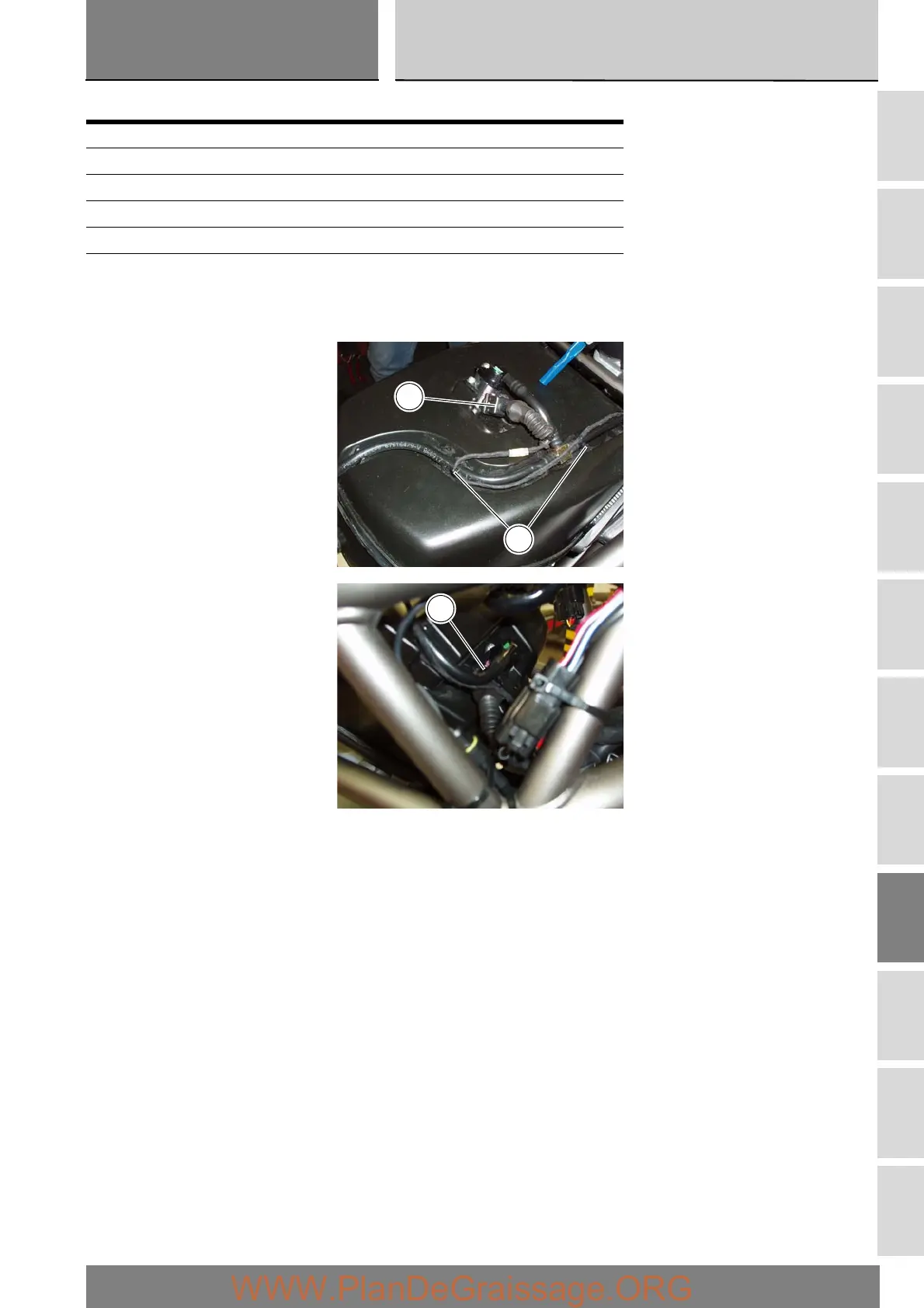

Disconnect the fuel injectors (13) from the main wiring harness.
Remove the retaining clips (A).
Operation Section reference
Remove the side fairings E 2
Remove the headlight shell E 1
Remove the fuel tank L 2
Remove the air scoops L 7
Disconnect the throttle cable F 1
A
13
13
