Fuel / Exhaust System

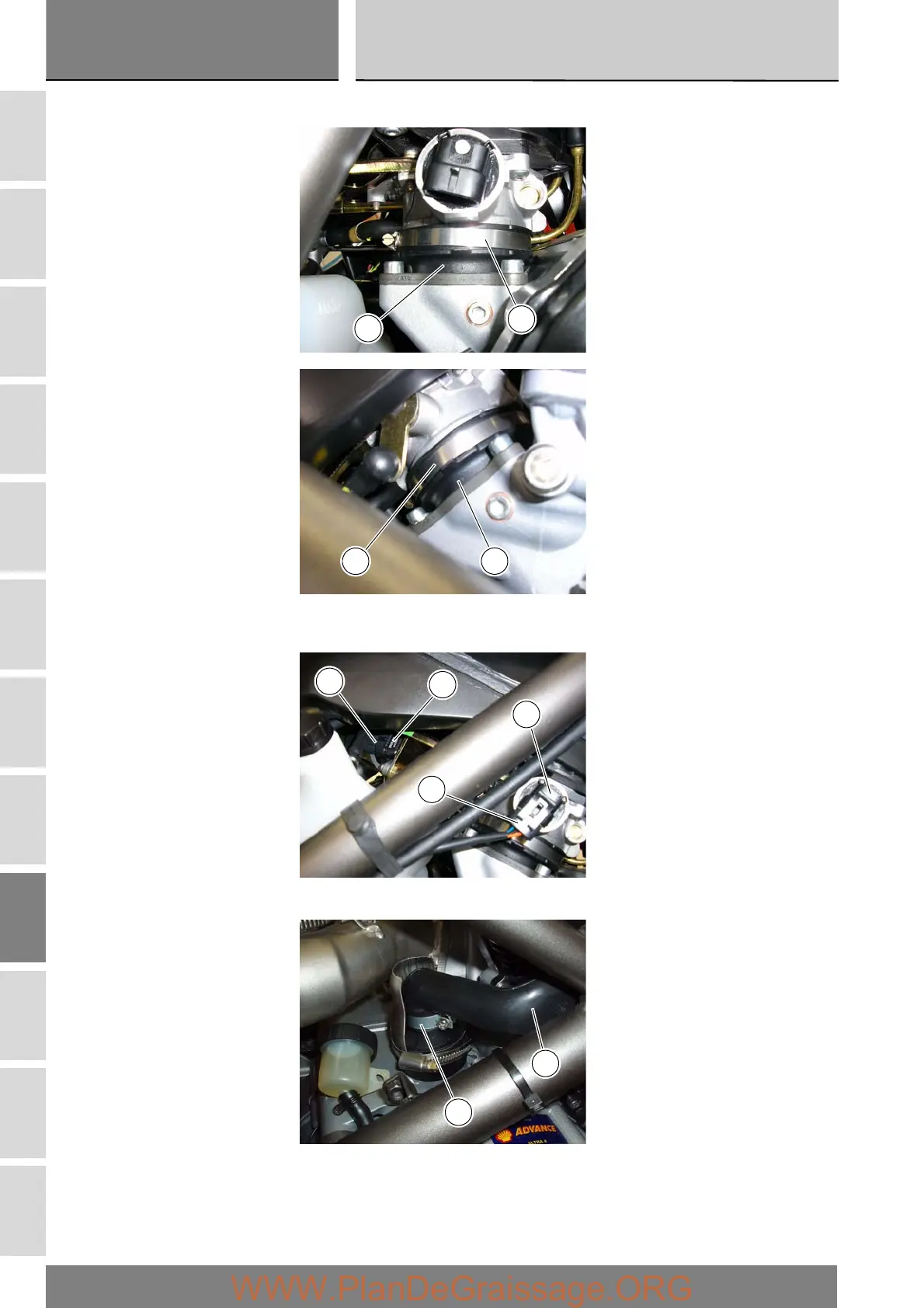

Loosen the clamps (B) securing the throttle body to the intake manifolds (C).
Disconnect the connector (D) connecting the main wiring loom to the stepper motor (1).
Disconnect the wiring connector (E) connecting the main wiring loom to the throttle position sensor (F).
Slacken off the clamp (G) dsecuring the hose (18) to the blow-by valve.
C
B
B
C
D
1
F
E
G
18
