section
N 9.2
212 1098/1098S - M.Y. 2007 - edition 00
Engine

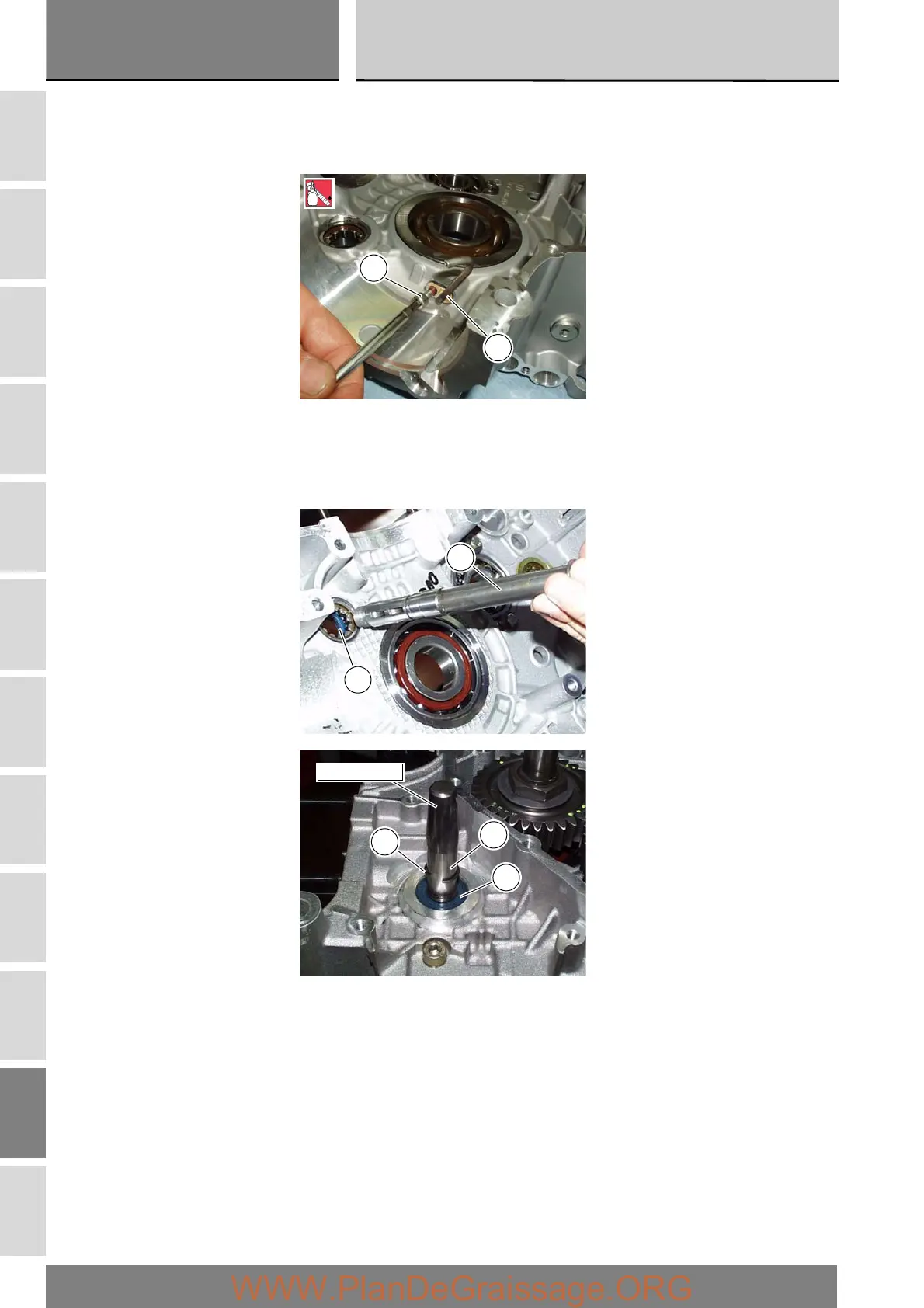

Reassembly of the crankcase halves
Apply the recommended threadlocker to the bolts (34) and secure the hoses (33) with the O-rings (32), tightening the bolts (34)
to the specified torque (Sect. C 3).
.
Install the timing belt driveshaft (30) in the roller bearing (4) in the right-hand crankcase half.
To avoid damaging the oil seal (14) on the timing belt driveshaft, protect the threaded end of the shaft with the special protective
cap 88700.5749. Dampen the oil seal (14) with alcohol and fit it on the timing belt driveshaft, seating it up against the roller
bearing (4).
Fit the circlip (29) in the groove on the shaft and remove the protective cap.
34
33
2
LOCK
30
4
88700.5749
30
29
14
