G 2
20 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

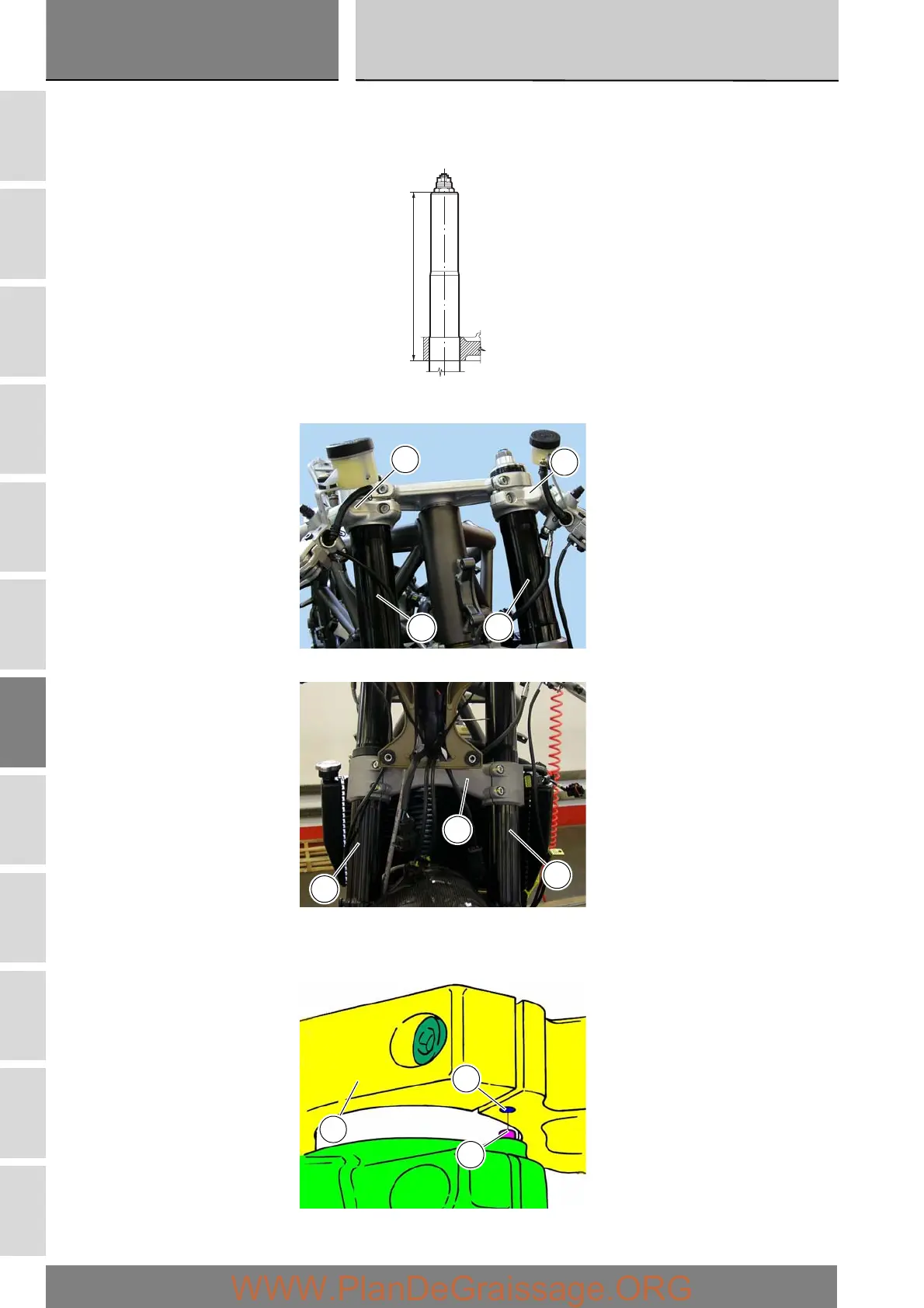

Refitting the front forks
Refit the fork legs, positioning them at the height shown in the figure relative to the bottom yoke.
Locate the fork legs (5) and (6) in the bottom yoke (4) and then fit the handlebars (31) and (32).
Locate the fork legs (5) and (6) in the top yoke (3).
To ensure the handlebars are correctly positioned, check that the end of the pin (A) engages the corresponding slot (B) in the
top yoke (3).
296 (0÷1) mm
31
32
6
5
4
5
6
3
A
B
