191098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

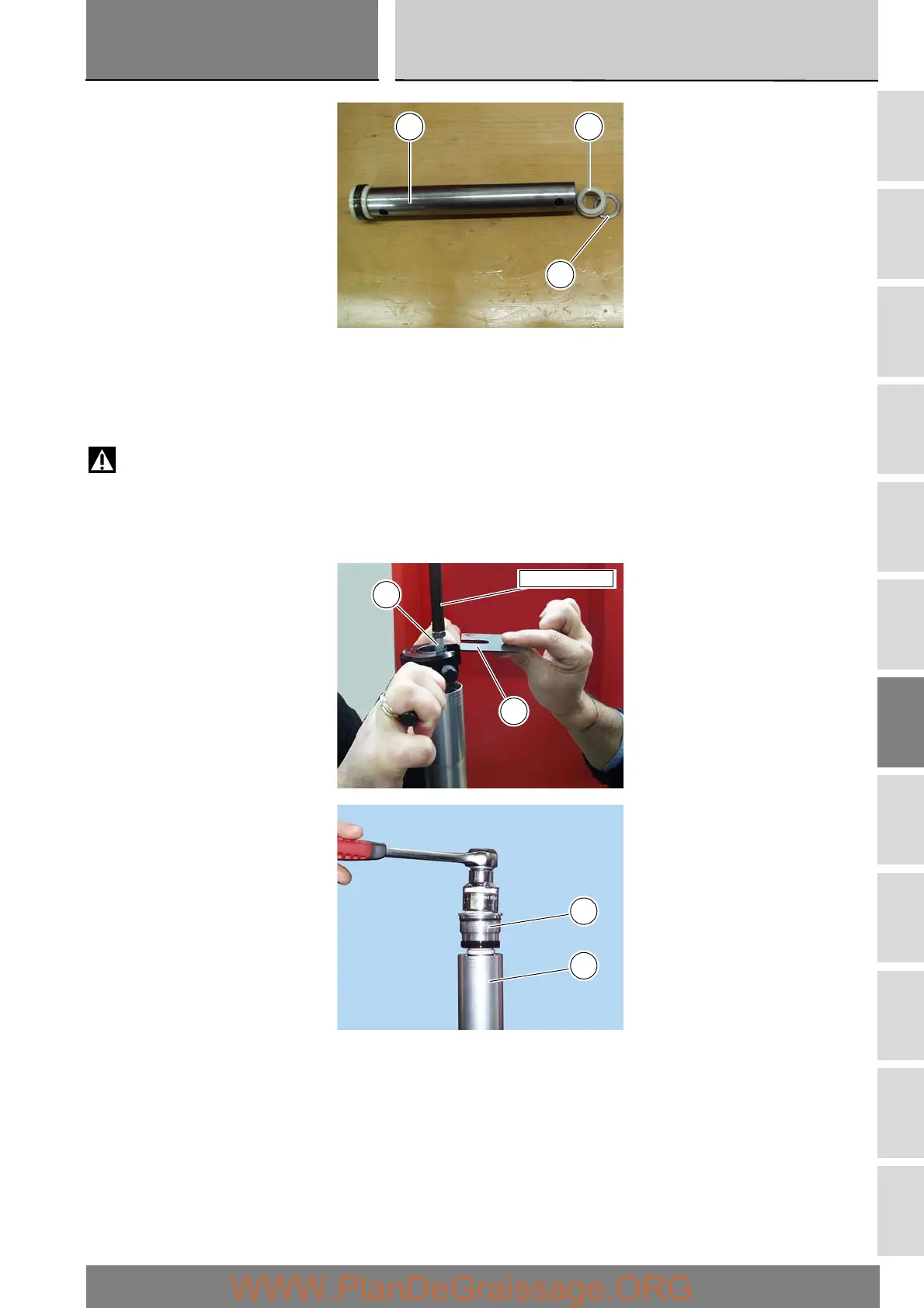

Fit the service tool part no. 88713.0957 (previously used for removal) into the lateral hole of upper spacer (11).
Push the tool down and position the spacer (D) under the lock nut of damper (8).
Remove the tool part no. 88713.0958.
Screw the top cap (14) onto the damper (8).
Using a hex wrench, hold the rebound damping adjuster (E) and tighten the top cap to 30 to 40 Nm.
Remove the spacer (D) by pushing the service tool (C, part no. 88713.0957) downwards.
Warning
The adjuster (A) on the top cap (14) should be screwed fully onto the thread of the damper (8).
Lift the outer tube (26) and tighten the top cap (14) to a torque of 30 to 40 Nm.
Set the adjusters according to riding requirements.
11 12
13
88713.0958
D
8
26
14
